Installation Procedure

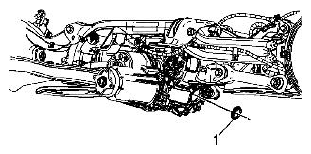

Fig 1: Identifying Axle Shaft Seal

Courtesy of SUZUKI OF AMERICA CORP.

Install the J 8092 to the J 33832.
Using the J 8092 and the J 33832, install the axle shaft seal (1).
Lift and position the differential in the rear cradle.

Fig 2: Identifying Left Rear Support Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the left rear support bolt.
Remove the transmission jack stand.
Install the left rear wheel drive shaft. Refer to REAR WHEEL DRIVE SHAFT REPLACEMENT .
Install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
Install the muffler assembly. Refer to MUFFLER REPLACEMENT .
Remove the spare tire.
Fill the rear differential with fluid. Refer to REAR AXLE LUBRICANT REPLACEMENT .
