Rear Axle Lubricant Replacement

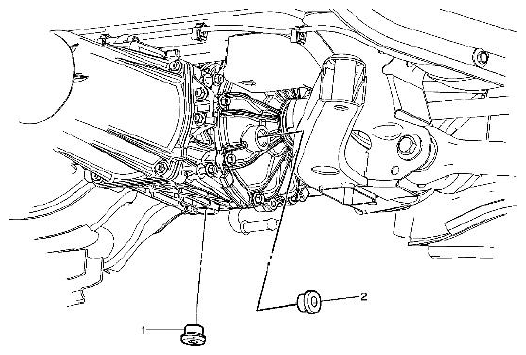

Fig 1: Identifying Plug Differential Drain Plug And Differential Fill Plug

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Plug Differential Drain Plug CAUTION: COMPONENT CONNECTOR END VIEWS Tightening torque 39 N.m (29 lb ft)
2	Differential Fill Plug Tip: Fill the differential with GM P/N 89021677 (Canadian P/N 89021678) to the bottom of the fill hole. Tightening torque 39 N.m (29 lb ft)
