Rear Axle Lubricant Level Inspection

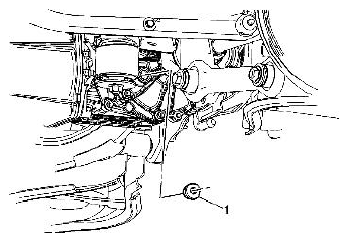

Fig 1: Identifying Rear Differential Fill Plug

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Rear Differential Fill Plug CAUTION: Refer to FASTENER NOTICE . The fluid level should be level with the bottom of the threads of the fill hole. If the fluid level is low, refer to REAR AXLE LUBRICANT REPLACEMENT for the proper fill instructions and type of fluid. Tightening torque 39 N.m (29 lb ft)
