Electronic Traction Control Switch Replacement

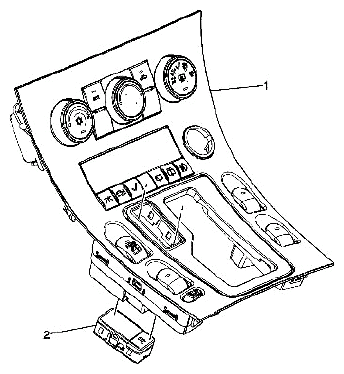

Fig 1: Identifying Electronic Traction Control Switch

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure Remove the Instrument Panel Lower Brace Bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
1	Traction Control Switch Assembly Tip: Release the tabs securing the traction control switch to the trim plate and remove the switch from the plate.
