Rear Seat Number 2 Head Restraint Guide Replacement

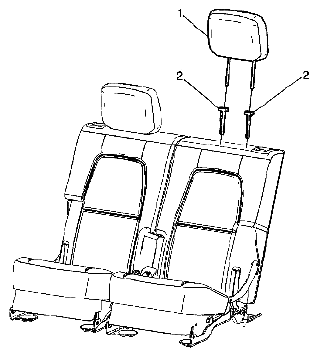

Fig 1: Identifying Rear Seat Number 2 Head Restraint Guide

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Remove the rear seat back cushion finish panel. Refer to REAR SEAT NUMBER 2 BACK CUSHION PANEL REPLACEMENT .
1	Rear Seat Head Restraint Push the button in and raise the head restraint to the full-up position. Insert a small round tool into the guide hole Pull up to remove the head restraint.
2	Front Seat Head Restraint Guides Tip:  Squeeze the bottom of the guides together and push upward to remove.
