Rear Seat Number 2 Back Cushion Panel Replacement

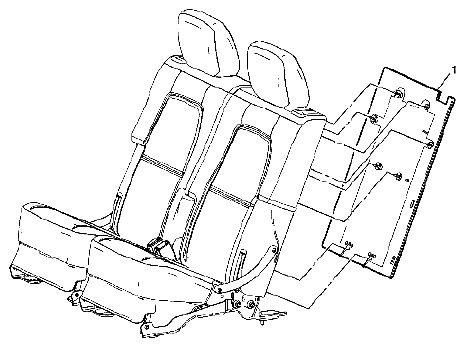

Fig 1: Identifying Rear Seat Number 2 Back Cushion Panel Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Rear Seat No. 2 Back Panel Procedure  Loosen the screws from the recliner handle to allow for easier removal of the panel. Use a J 38778 to aid in the removal of the seat back panel. Slide the seat back pull strap through the back panel to remove. Special Tools  J 38778 Door Trim Pad Clip Remover
