Rear Seat Number 2 Cushion Frame Replacement

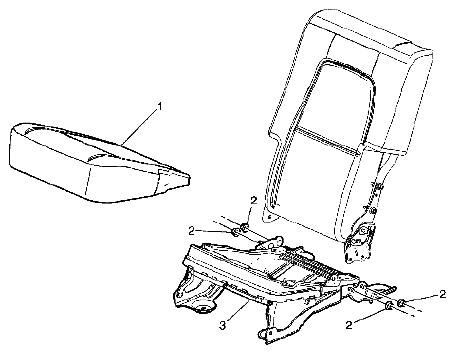

Fig 1: Identifying Rear Seat Number 2 Cushion Frame Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to REAR NUMBER 2 SEAT REPLACEMENT . Remove the rear seat outer recliner cover. Refer to REAR SEAT BACK RECLINER COVER REPLACEMENT (INNER) or REAR SEAT BACK RECLINER COVER REPLACEMENT (OUTER) .
1	Rear Seat No. 2 Cushion Cover and Pad Refer to REAR SEAT NUMBER 2 CUSHION COVER AND PAD REPLACEMENT .
2	Rear Seat No. 2 Cushion Frame Nut (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
3	Rear Seat No. 2 Cushion Frame
