Rear Seat Back Cushion Outer Pivot Support Cover Replacement

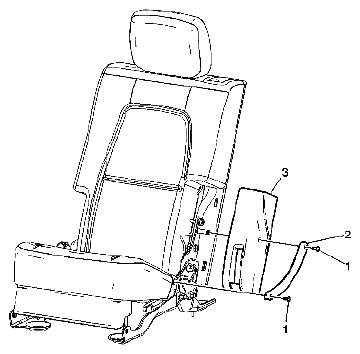

Fig 1: Identifying Rear Seat Back Cushion Outer Pivot Support Cover Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Remove the rear seat. Refer to REAR NUMBER 2 SEAT REPLACEMENT .
1	Rear Seat No. 2 Drive Link Cover Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Rear Seat No. 2 Drive Link and Cover
3	Rear Seat Back Cushion Outer Support Cover Tip:  Pull outward to release from the seat frame.
