Rear Seat Back Cushion Frame Replacement

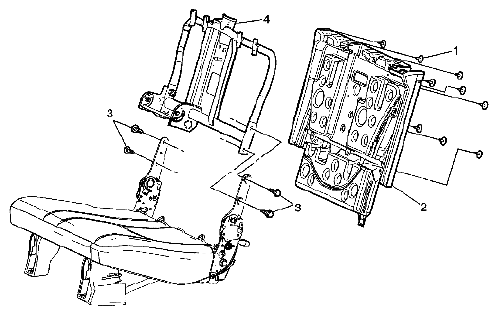

Fig 1: Identifying Rear Seat Back Cushion Frame Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to REAR SEAT REPLACEMENT . Remove the rear seat back cover and pad. Refer to REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (60 PERCENT SEAT) or REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (40 PERCENT SEAT) . Remove the rear seat back release cables. Refer to REAR SEAT BACK CUSHION LATCH CABLE REPLACEMENT .
1	Rear Seat No. 1 Back Panel Screw (Qty: 9) CAUTION: Refer to FASTENER NOTICE . Tightening torque 9 N.m (80 lb in)
2	Rear Seat No. 1 Back Panel
3	Rear Seat No. 1 Back Frame Bolt (Qty: 4) Tightening torque 25 N.m (18 lb ft)
4	Rear Seat No. 1 Back Frame
