Rear Seat Back Cushion Latch Cable Replacement

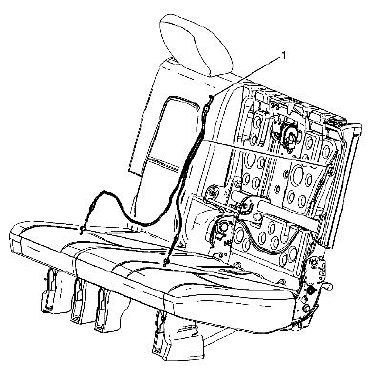

Fig 1: Identifying Rear Seat Back Cushion Latch Cable
G05471352Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedures
  1. Remove the rear seat. Refer to REAR SEAT REPLACEMENT .
  2. Remove the rear seat back cover and pad. Refer to REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (60 PERCENT SEAT)  or REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (40 PERCENT SEAT) .
1 Rear Seat No. 1 Back Release Cables
  1. Disconnect the seat back release cables at the inner and outer recliners.
  2. The cable secures into place in the seat back panel.
