Front Seat Recliner Mechanism Replacement

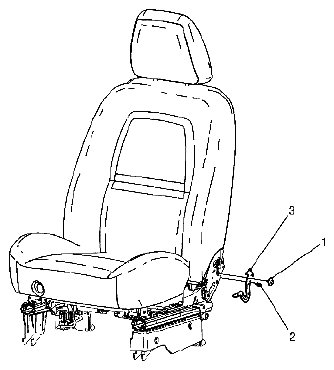

Fig 1: Identifying Front Seat Recliner Mechanism
G05471298Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedures
  1. Remove the front seat. Refer to FRONT SEAT REPLACEMENT - BUCKET .
  2. Remove the recliner handle by pulling firmly forward.
  3. Remove the front seat outer adjuster finish cover. Refer to FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (NON FOLD FLAT)  or FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (FOLD FLAT) .
1 Front Seat Recliner Lever Bolt
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
10 N.m (89 lb in)
2 Front Seat Recliner Spring
3 Front Seat Recliner Lever
