Front Seat Adjuster Replacement

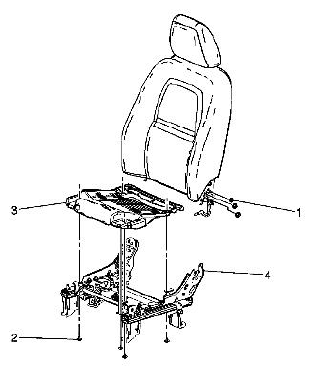

Fig 1: Identifying Front Seat Adjuster Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to FRONT SEAT REPLACEMENT - BUCKET . Remove the seat cushion cover and pad. Refer to FRONT SEAT CUSHION COVER AND PAD REPLACEMENT .
1	Front Seat Back Recliner Nut (Qty: 6) CAUTION: Refer to FASTENER NOTICE . Tightening torque 45 N.m (33 lb ft)
2	Front Seat Cushion Frame Bolt (Qty: 4) Tightening torque 12 N.m (9 lb ft)
3	Front Seat Cushion Frame
4	Front Seat Adjuster Assembly Procedure Use a flat-bladed tool to remove the recliner cable from the seat frame. When replacing the adjuster assembly with a new unit, transfer components as necessary.
