Floor Panel Carpet Replacement (Rear)

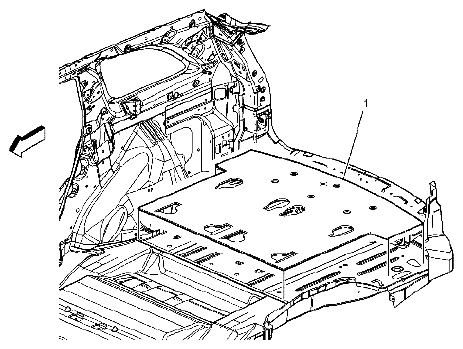

Fig 1: Identifying Rear Floor Panel Carpet Assembly

Courtesy of SUZUKI OF AMERICA CORP.

FLOOR PANEL CARPET COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove third row seats. Remove rear quarter lower trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . Remove liftgate door sill plate. Refer to LIFTGATE DOOR SILL PLATE REPLACEMENT .
1	Rear Floor Panel Carpet Assembly
