Liftgate Door Sill Plate Replacement

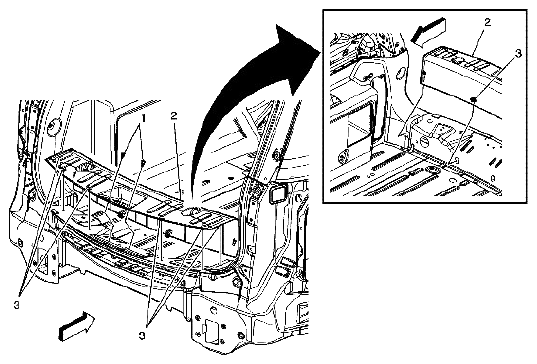

Fig 1: Identifying Liftgate Door Sill Plate Push Pin Fasteners, Liftgate Door Sill Plate Assembly And Retainer

Courtesy of SUZUKI OF AMERICA CORP.

LIFTGATE DOOR SILL PLATE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove rear floor storage bin. Refer to REAR STORAGE COMPARTMENT REPLACEMENT . Remove cargo hooks from liftgate door sill plate.
1	Liftgate Door Sill Plate Push Pin Fasteners (Qty: 2)
2	Liftgate Door Sill Plate Assembly
3	Liftgate Door Sill Plate Retainer (Qty: 6)
