Mobile Telephone Microphone Replacement (With CF5)

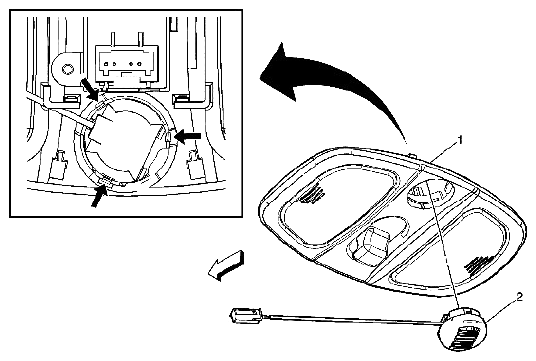

Fig 1: Identifying Mobile Telephone Microphone Assembly And Electrical Connector (With CF5)
G05471718Courtesy of SUZUKI OF AMERICA CORP.
CALLOUT AND COMPONENT NAME DESCRIPTION

Callout Component Name
1 Roof Console Assembly
Refer to ROOF CONSOLE REPLACEMENT .
2 Mobile Telephone Microphone Assembly
Procedure
  1. Disconnect the microphone electrical connector.
  2. From the top side of the overhead console remove the microphone by releasing the 3 clips and pushing the microphone through the bottom of the console.
