Global Positioning System (GPS) Antenna Replacement

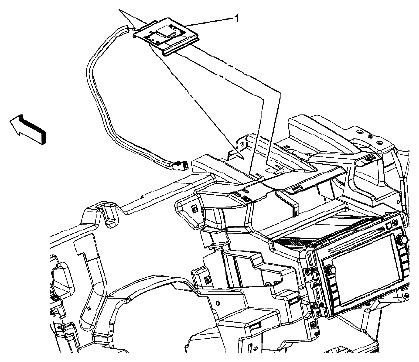

Fig 1: Identifying Instrument Panel Upper Trim Pad And Navigation Antenna Assembly
G05471724Courtesy of SUZUKI OF AMERICA CORP.
CALLOUT AND COMPONENT NAME DESCRIPTION

Callout Component Name
Preliminary Procedure
  1. Remove the instrument panel upper trim pad. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT .
  2. Remove the radio. Refer to RADIO REPLACEMENT .
1 Navigation Antenna Assembly
  1. Unclip the navigation antenna from the instrument panel retainer.
  2. Note the routing of the antenna for installation purposes.
