Oil Life Reset Procedure Does Not Function As Expected (TS 07 07037)

Publication date: 2007-07-03
Reference number: TS 07 07037

OIL LIFE RESET PROCEDURE DOES NOT FUNCTION AS EXPECTED

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 07 07037, Date of Issue: July 03, 2007

SUZUKI:	2007 XL7 (JC636)
SECTION:	General Info

Oil Life Reset procedure in the Owners Manual and Service Manual does not work.

Incorrect information was issued in the Owners Manual and Service Manual regarding Oil Life Resetting.

Use the procedure below to reset the oil life monitor.

With ignition key ON engine OFF, press and release the "Vehicle Information" button until "%XX OIL LIFE REMAINING" is displayed on the "Driver Information Center" (DIC).

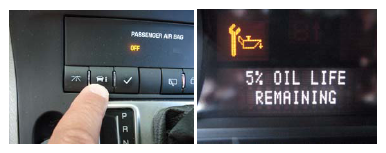

Fig 1: Identifying Vehicle Information Button
Courtesy of SUZUKI OF AMERICA CORP.
Press and hold the "Set/Reset" button for up to 5 seconds until the DIC shows "100% OIL LIFE REMAINING"

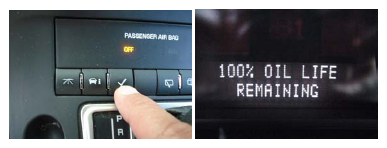

Fig 2: Identifying Set/Reset Button

Courtesy of SUZUKI OF AMERICA CORP.
