Assembly Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

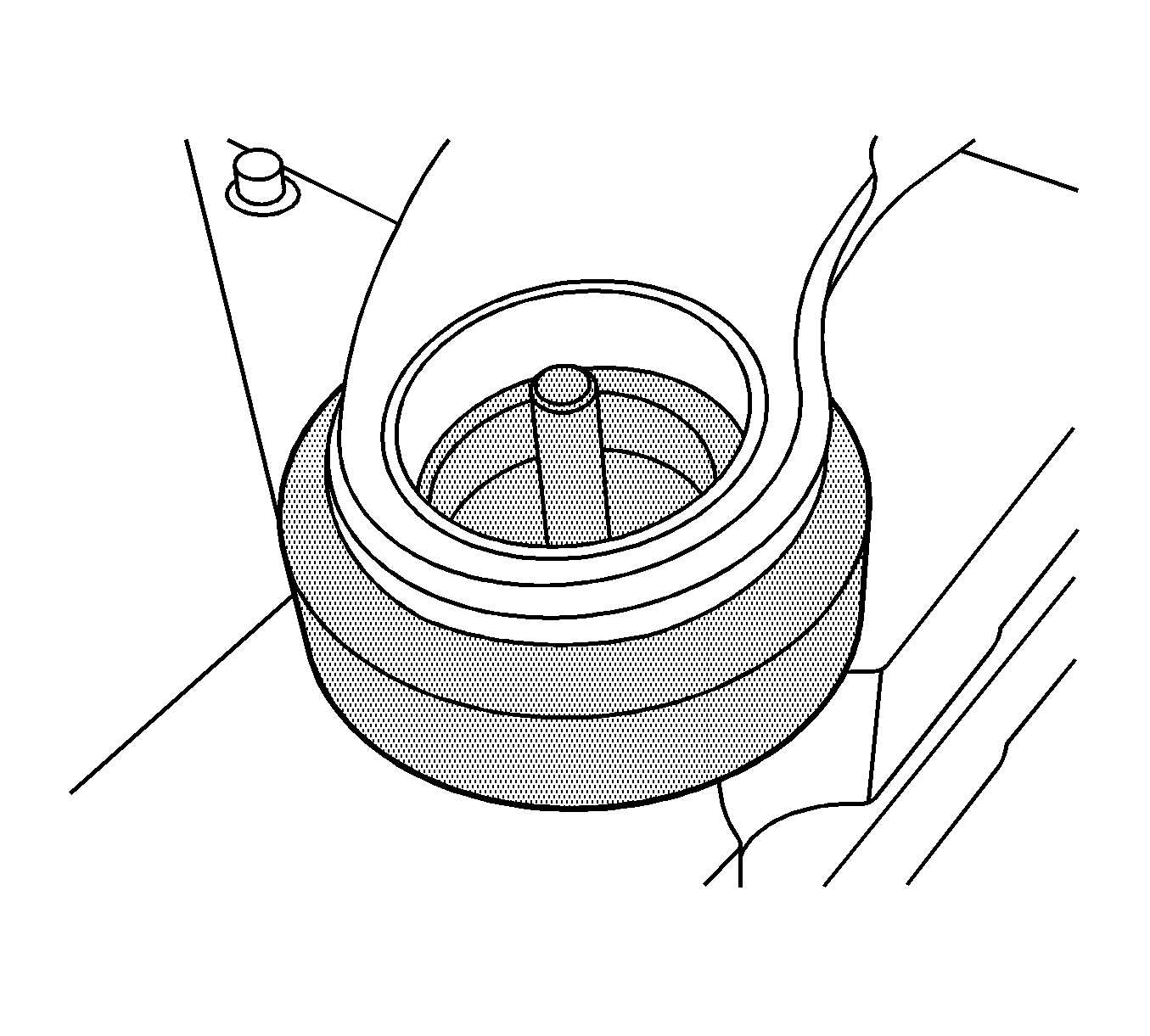

    Fig 1: CH-48358-4 On Press
    GM1852837Courtesy of GENERAL MOTORS CORP.
  1. Place the CH-48358-4 on the press.
  2. Position the control arm on the CH-48358-4.
  3. Align the arrow on the rear bushing with the dot on the control arm.

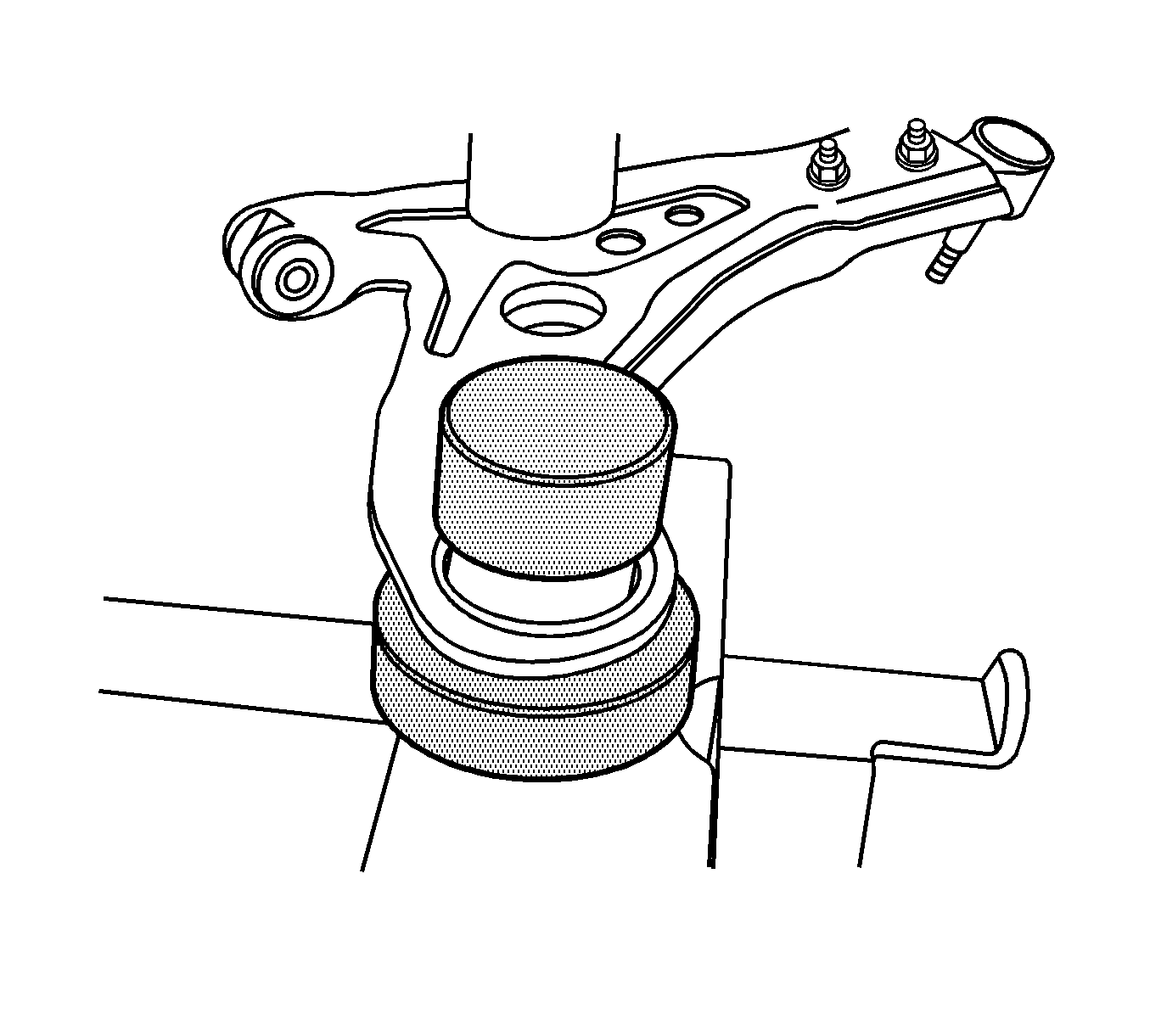

    4. Fig 2: Pressing In Bushing
    GM1852838Courtesy of GENERAL MOTORS CORP.
  4. Place a NEW rear bushing on the control arm.
  5. Place the CH-48358-3 on the rear bushing.
  6. Use the press in order to install the rear bushing.
    7. Fig 3: Bushing, Control Arm & KM-508-A
    GM1241993Courtesy of GENERAL MOTORS CORP.
  7. Place the KM-307-B  on a press. See Special Tools .
  8. From the KM-508-A  kit (1), place the KM-508-4 on the KM-307-B  . See Special Tools .
  9. Place the control arm on the KM-508-4.
  10. Place the KM-508-2 on the control arm.
  11. Coat the outside of the front bushing and the inside of the front bushing hole in the control arm with lubricant.
  12. Place the front bushing in the KM-508-2. Align the plus signs on the bushing with the control arm.
  13. Place the KM-508-3 on the front bushing.
  14. Use the press in order to install the front bushing.
  15. Center the front bushing.
  16. Install the front lower control arm assembly. Refer to Control Arm Replacement .
