Special Tools

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Illustration Tool Number/ Description
GM1850921Courtesy of GENERAL MOTORS CORP.
 CH-48358
Front Control Arm Rear Bushing Replacer
GM1906699Courtesy of GENERAL MOTORS CORP.
 DT-47540
(DW340-120-01)
Wheel Hub Replacer Adapter
GM1873205Courtesy of GENERAL MOTORS CORP.
 DT-47541
(DW340-120-02)
Wheel Bearing Remover Adapter
GM1873206Courtesy of GENERAL MOTORS CORP.
 DT-47542
(DW340-120-03)
Wheel Bearing Installer Adapter
GM1906697Courtesy of GENERAL MOTORS CORP.
 DT-47543
(DW340-120-04)
Wheel Bearing Installer Adapter

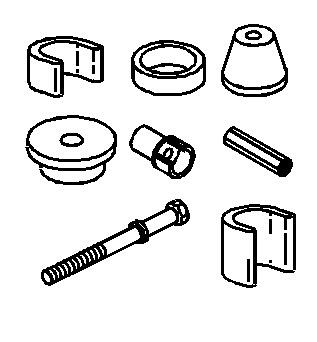

GM2017Courtesy of GENERAL MOTORS CORP.
 J-21474-01
Control Arm Bushing Set
GM162970Courtesy of GENERAL MOTORS CORP.
 J-22912-B
Split Plate
GM1873198Courtesy of GENERAL MOTORS CORP.
 J-37105-C
(DW340-040)
Front Hub Service Set

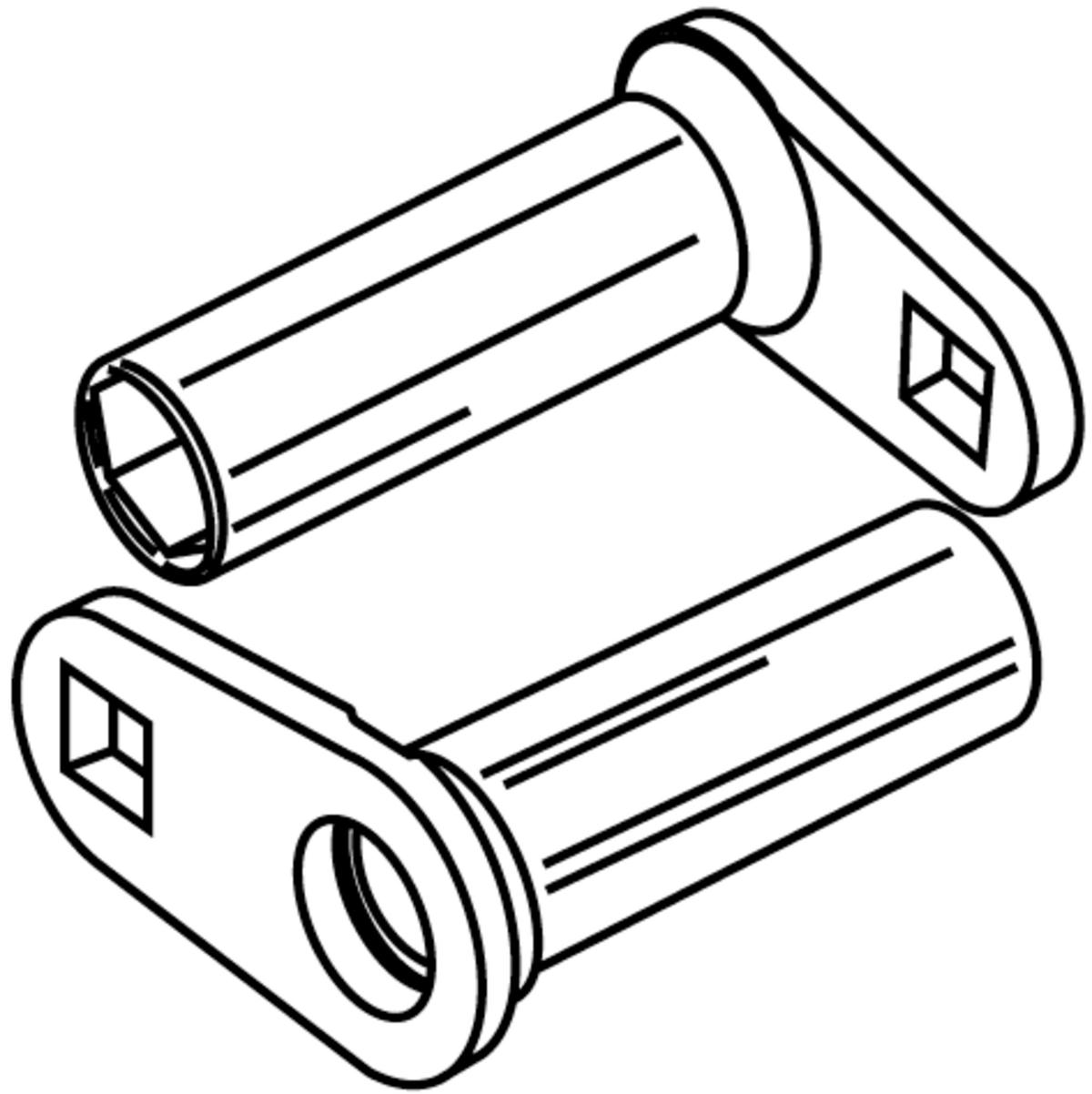

GM1256942Courtesy of GENERAL MOTORS CORP.
 J 42468
Front Strut Mount Nut Wrench

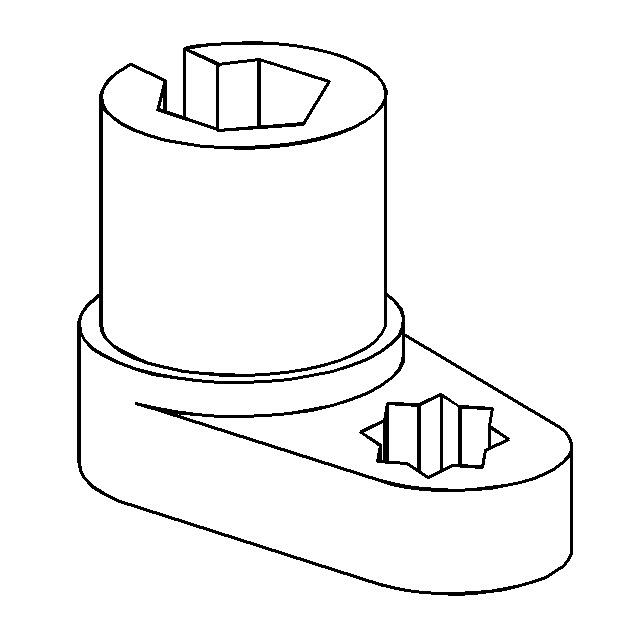

GM1873204Courtesy of GENERAL MOTORS CORP.
 J-44626
Oxygen Sensor 22 mm Socket
GM827801Courtesy of GENERAL MOTORS CORP.
 J-45400
(KM-329-A)
Strut Spring Compressor

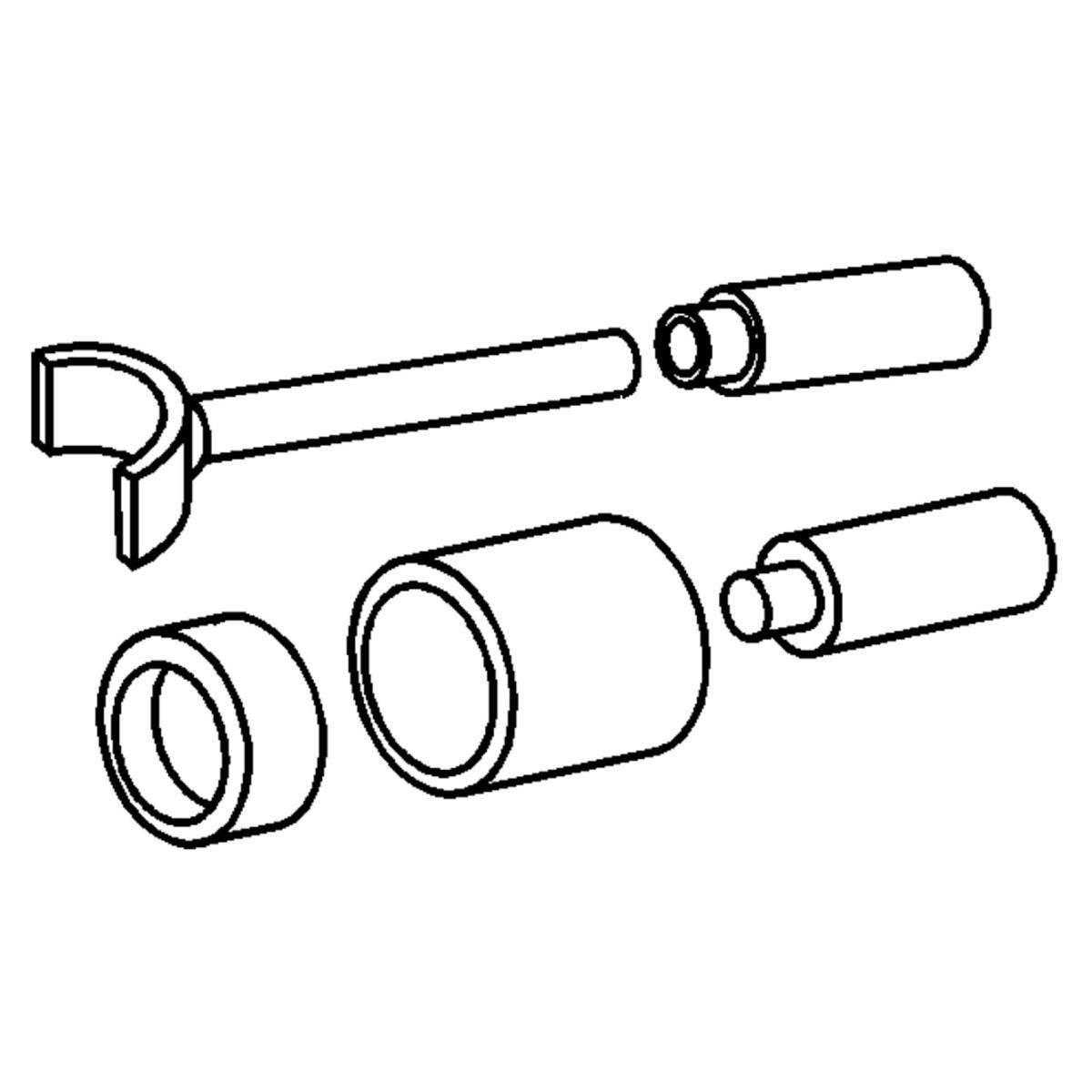

GM1256952Courtesy of GENERAL MOTORS CORP.
 KM-158
Remover/Installer

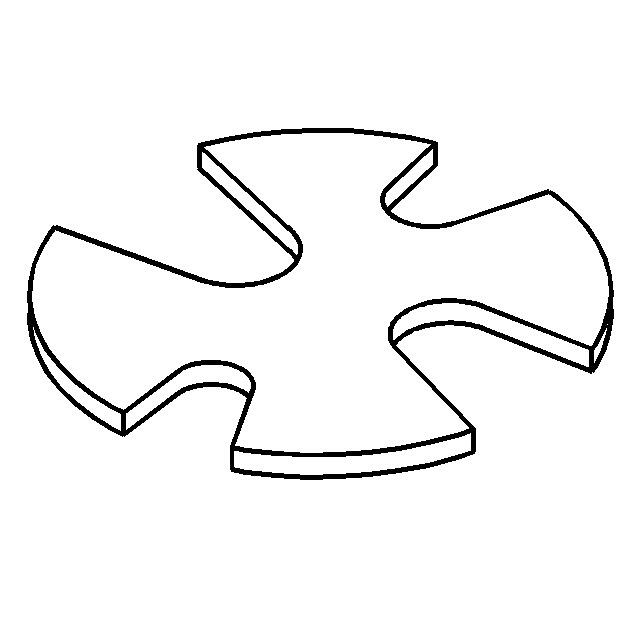

GM1282425Courtesy of GENERAL MOTORS CORP.
 KM-307-B
Removal Plate
GM1281175Courtesy of GENERAL MOTORS CORP.
 KM-507-C
Ball Joint Remover

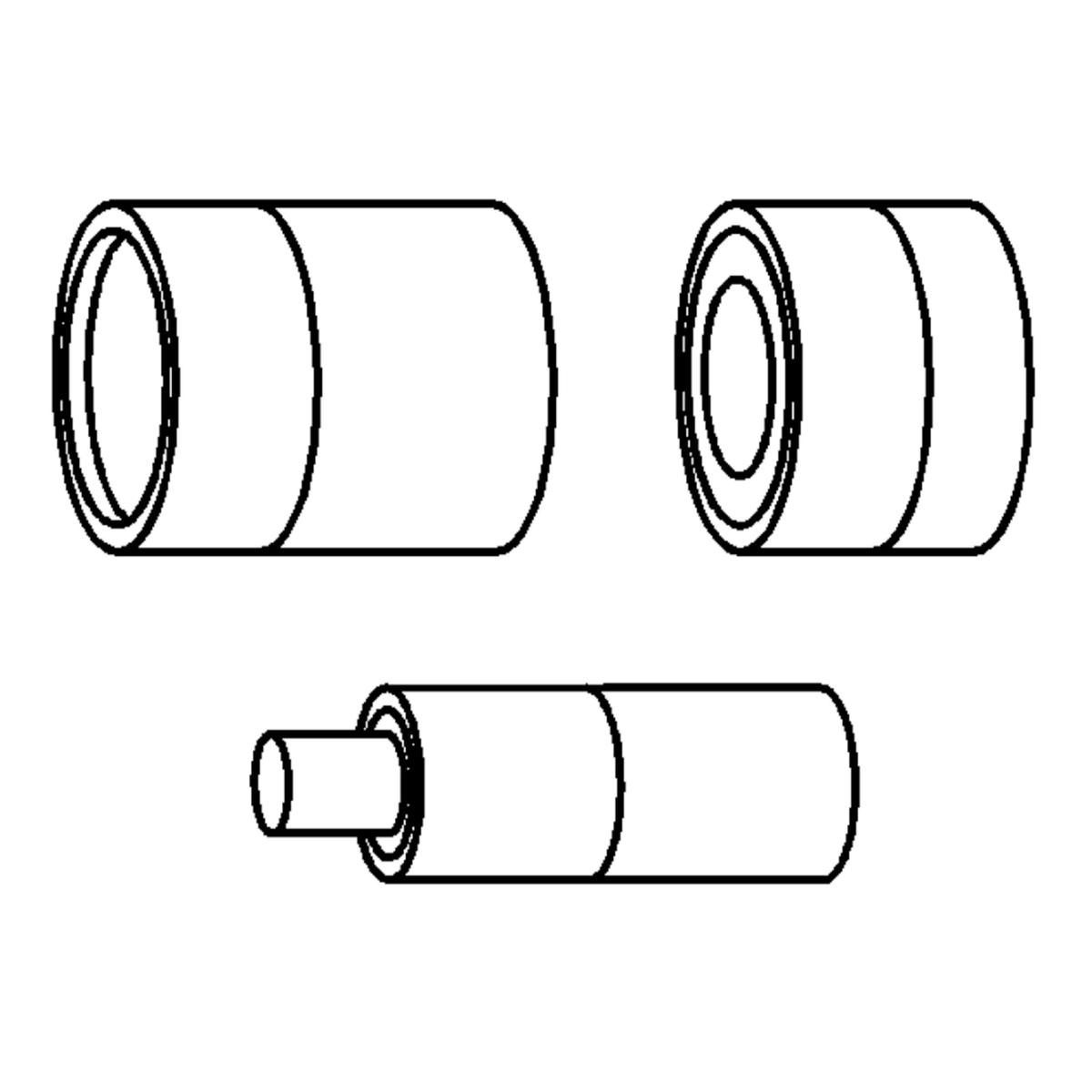

GM1282424Courtesy of GENERAL MOTORS CORP.
 KM-508-A
Control Arm Bushing Remover/Installer
