Hood Hinges Installation
WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

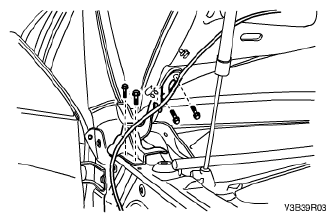

- Install the hinge with the bolts.
Tighten:
Tighten the hinge bolts to 24 N.m (18 lb-ft).
- Install the fender. Refer to Fender Installation .
- Install the hood. Refer to Hood Installation .
