Water Pump and Generator Drive Belt Removal and Installation: Installation

Loosen tensioner by turning the tensioner pulley (2) clockwise.
While holding the tensioner, install generator belt (1).
Install right side engine under cover.
NOTE:
- Make sure that the belt fits each pulley's groove properly.
- After installing generator belt, make sure that tension indicator is within standard range referring to WATER PUMP AND GENERATOR DRIVE BELT ON-VEHICLE INSPECTION .

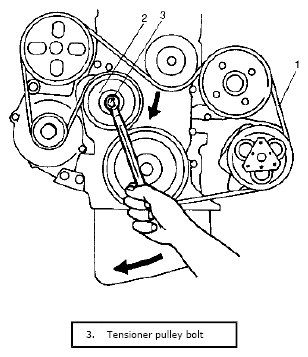

Fig 1: Identifying Generator Belt, Tensioner Pulley And Bolt
Courtesy of SUZUKI OF AMERICA CORP.
