Water Pump and Generator Drive Belt On-Vehicle Inspection
- Inspect belt for cracks, cuts, deformation, wear and cleanliness. If any of these conditions are found, replace belt, referring to WATER PUMP AND GENERATOR DRIVE BELT REMOVAL AND INSTALLATION .

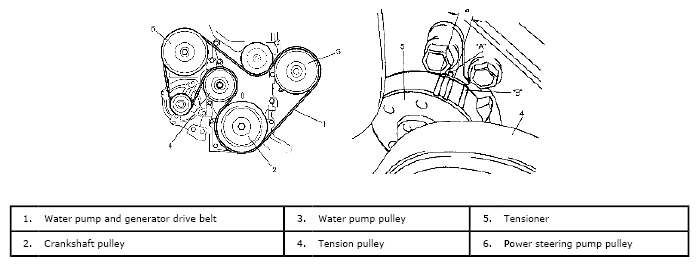

- Check to make sure that tension indicators are as follows in the figure by using mirror.
- If the tension indicator "B" is found to the left of the indicator "A", replace the generator belt.
- If new generator belt has been installed, indicator "A" should be within "a" of the figure.
If it isn't, it means that belt is not installed properly.
Reinstall it properly.
