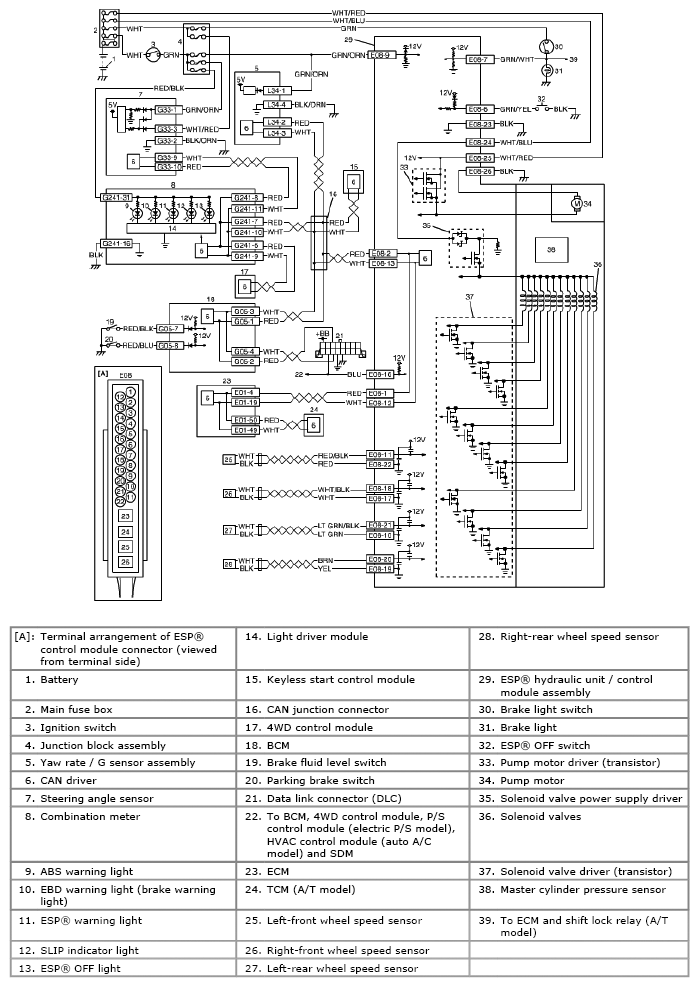

Electronic Stability Program Wiring Circuit Diagram
Connector "E08" (ESP® Control Module Connector)
CONNECTOR TERMINAL REFERENCE TABLE
| Terminal | Circuit | |
|---|---|---|
| E08 | 1 | CAN communication line (high) for ECM and TCM (A/T model) |
| 2 | CAN communication line (high) | |
| 3 | - | |
| 4 | - | |
| 5 | - | |
| 6 | ESP® OFF switch input | |
| 7 | Brake light switch | |
| 8 | - | |
| 9 | Ignition switch | |
| 10 | Left-rear wheel speed sensor (-) | |
| 11 | Left-front wheel speed sensor (+) | |
| 12 | CAN communication line (low) for ECM and TCM (A/T model) | |
| 13 | CAN communication line (low) | |
| 14 | - | |
| 15 | - | |
| 16 | Data link connector | |
| 17 | Right-front wheel speed sensor (-) | |
| 18 | Right-front wheel speed sensor (+) | |
| 19 | Right-rear wheel speed sensor (-) | |
| 20 | Right-rear wheel speed sensor (+) | |
| 21 | Left-rear wheel speed sensor (+) | |
| 22 | Left-front wheel speed sensor (-) | |
| 23 | Ground | |
| 24 | Power supply for solenoid valve | |
| 25 | Power supply for pump motor | |
| 26 | Ground for pump motor | |
