Power Driver Seat Slide Assembly Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the slide assembly with the bolts and the screws.

    Tighten:

    • Tighten the slide assembly bolts to 25 N.m (18 lb-ft).
    • Tighten the slide assembly screws to 10 N.m (89 lb-in.).
  2. Connect the electrical connector.
  3. Install the front seat cushion. Refer to Front Seat Cushion Installation  .
  4. Install the driver seat. Refer to Front Bucket Seat Installation .

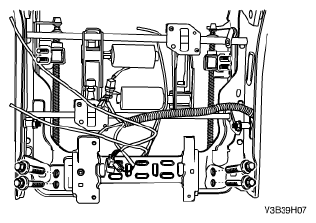

    Fig 1: Identifying Power Driver Seat Slide Assembly
    G04720513Courtesy of SUZUKI OF AMERICA CORP.
