Clutch Drum & Input Shaft Assembly Disassembly

Reference:  AUTOMATIC TRANSMISSION ASSEMBLY DISMOUNTING AND REMOUNTING

Reference:  AUTOMATIC TRANSMISSION UNIT DISASSEMBLY

Reference:  CLUTCH DRUM & INPUT SHAFT ASSEMBLY COMPONENTS

1. Place oil pump (1) onto torque converter (2), and then place clutch drum and input shaft assembly (3) onto oil pump (1).
   Fig 1: Identifying Oil Pump Onto Torque Converter And Then Clutch Drum & Input Shaft Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove snap ring (1) from clutch drum and input shaft assembly (2) by using flat end rod or the like.
   Fig 2: Identifying Snap Ring

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove reverse clutch hub (1) with reverse clutch reaction sleeve, clutch cushion plate, reverse clutch flange, 4 reverse clutch discs and 3 reverse clutch plates from clutch drum assembly.
   Fig 3: Identifying Reverse Clutch Hub

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove reverse clutch reaction sleeve (1) from reverse clutch hub.
   Fig 4: Identifying Reverse Clutch Reaction Sleeve

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove clutch cushion plate (1), reverse clutch flange "F", reverse clutch plates "P" and reverse clutch discs "D" from reverse clutch hub.
   Fig 5: Identifying Clutch Cushion Plate

   Courtesy of SUZUKI OF AMERICA CORP.

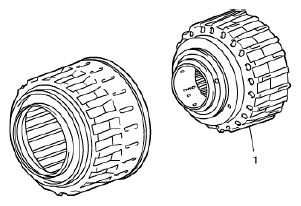

6. Remove direct clutch hub (1) from clutch drum assembly.
   Fig 6: Identifying Direct Clutch Hub

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove 2 thrust needle roller bearings (1) from direct clutch hub.
   Fig 7: Identifying Thrust Needle Roller Bearings

   Courtesy of SUZUKI OF AMERICA CORP.
8. Remove forward clutch hub (1) from clutch drum assembly.
   Fig 8: Identifying Forward Clutch Hub

   Courtesy of SUZUKI OF AMERICA CORP.
9. Remove thrust bearing race No.2 (1) and thrust bearing race (2) from forward clutch hub.
   Fig 9: Identifying Thrust Bearing Race No.2 & Thrust Bearing Race

   Courtesy of SUZUKI OF AMERICA CORP.
10. Remove thrust needle roller bearing (1) from clutch drum assembly.
    Fig 10: Identifying Thrust Needle Roller Bearing

    Courtesy of SUZUKI OF AMERICA CORP.
11. Remove input shaft assembly (1) from clutch drum assembly.
    Fig 11: Identifying Input Shaft Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
12. Remove 3 oil seal rings (1) from input shaft assembly.
    Fig 12: Identifying Oil Seal Rings

    Courtesy of SUZUKI OF AMERICA CORP.
13. Remove snap ring (1) from input shaft assembly (2) by using flat end rod or the like.
    Fig 13: Identifying Snap Ring

    Courtesy of SUZUKI OF AMERICA CORP.
14. Remove forward clutch flanges "F", forward clutch discs "D" and forward clutch plates "P" from input shaft assembly.
    Fig 14: Identifying Forward Clutch Plates From Input Shaft Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
15. Compress clutch balancer No.1 and forward clutch return spring (1) until the clutch balancer No.1 is lowered to the place 1 - 2 mm (0.039 - 0.078 in.) from the snap ring groove by using special tool and hydraulic press, and then remove snap ring (2).
    CAUTION:

    Be careful when applying pressure, for overpressure will cause forward clutch return spring to deform.

    NOTE:

    Set special tool to the width of "a" 68 mm (2.652 in.) as shown in figure.

    Special Tool

    (A): 09926-96520

    Fig 15: Identifying Special Tool On Clutch Return Spring

    Courtesy of SUZUKI OF AMERICA CORP.
16. Remove clutch balancer No.1 (1) and forward clutch return spring (2) from input shaft assembly.
    Fig 16: Identifying Clutch Balancer No.1 And Forward Clutch Return Spring

    Courtesy of SUZUKI OF AMERICA CORP.
17. Remove forward clutch piston (1) from input shaft assembly (2) by applying compressed air (392 kPa, 4.0 kg/cm² , 57 psi) into oil hole (3) of input shaft assembly.
    Fig 17: Applying Compressed Air Of Input Shaft Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
18. Remove reverse clutch flange (1) from clutch drum assembly (2).
    Fig 18: Identifying Reverse Clutch Flange

    Courtesy of SUZUKI OF AMERICA CORP.
19. Remove 2 snap rings (1) from clutch drum assembly (2) by using flat end rod or the like.
    Fig 19: Identifying Snap Rings From Clutch Drum Assembly

    Courtesy of SUZUKI OF AMERICA CORP.

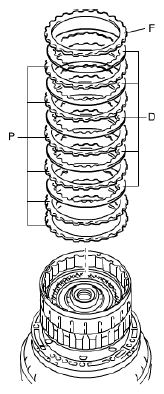

20. Remove direct clutch flange "F", direct clutch plates "P" and direct clutch discs "D" from clutch drum assembly.
    Fig 20: Identifying Clutch Flange, Direct Clutch Plates & Direct Clutch Discs

    Courtesy of SUZUKI OF AMERICA CORP.
21. Compress clutch balancer No.3 and reverse clutch return spring (1) until the clutch balancer No.3 is lowered to the place 1 - 2 mm (0.039 - 0.078 in.) from the snap ring groove by using special tool and hydraulic press, and then remove snap ring (2).
    CAUTION:

    Be careful when applying pressure, for overpressure will cause reverse clutch return spring to deform.

    Special Tool

    (A): 09926-96040

    Fig 21: Compressing Clutch Balancer No.3 & Reverse Clutch Return Spring

    Courtesy of SUZUKI OF AMERICA CORP.

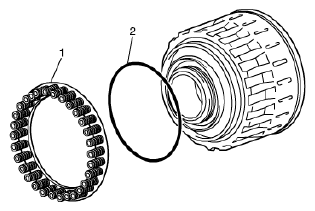

22. Remove reverse clutch return spring (1) and O-ring (2) from reverse clutch piston.
    Fig 22: Identifying Reverse Clutch Return Spring & O-Ring

    Courtesy of SUZUKI OF AMERICA CORP.
23. Remove reverse clutch piston sub assembly from clutch drum sub assembly (1).
    Fig 23: Identifying Reverse Clutch Piston Sub Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
24. Compress clutch balancer No.2 and direct clutch return spring (1) until the clutch balancer No.2 is lowered to the place 1 - 2 mm (0.039 - 0.078 in.) from the snap ring groove by using special tool and hydraulic press, and then remove snap ring (2).
    CAUTION:

    Be careful when applying pressure, for overpressure will cause direct clutch return spring to deform.

    Special Tool

    (A): 09926-96040

    Fig 24: Applying Pressure Direct Clutch Return Spring With Special Tool

    Courtesy of SUZUKI OF AMERICA CORP.
25. Using 2 screw drivers, remove direct clutch piston sub assembly (1) from clutch drum.
    Fig 25: Aligning Clutch Piston Sub Assembly With Clutch Drum Hole

    Courtesy of SUZUKI OF AMERICA CORP.
26. Remove clutch balancer No.2 (1) and direct clutch return spring (2) from direct clutch piston sub assembly.
    Fig 26: Identifying Clutch Balancer No.2 & Direct Clutch Return Spring

    Courtesy of SUZUKI OF AMERICA CORP.
