Clutch Drum & Input Shaft Assembly Components

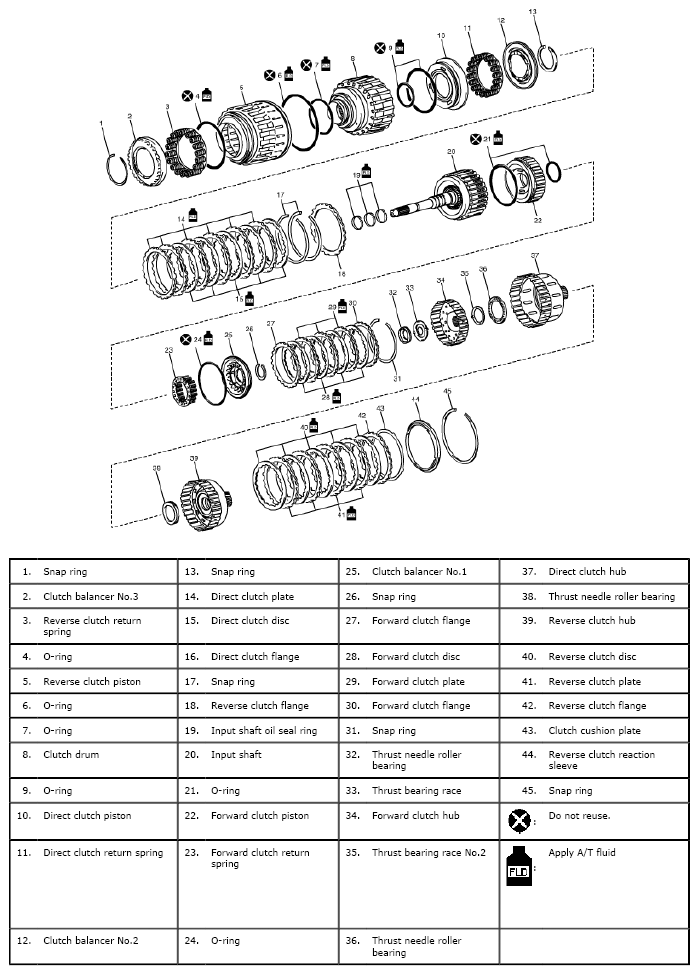

Fig 1: Exploded View Of Clutch Drum & Input Shaft Assembly Components
G04824970Courtesy of SUZUKI OF AMERICA CORP.
