Rear Knuckle Removal and Installation (2WD Model): Installation

Reference: REAR SUSPENSION KNUCKLE CHECK

  1. Install rear knuckle to strut, and connect control rods and trailing rod to knuckle. At this point, temporarily tighten them by hand.
  2. Tighten strut bracket bolts and nuts to specified torque.

    Tightening torque

    Strut bracket nut a: 90 N.m (9.0 kg-m, 65.0 lb-ft)

    Fig 1: Tightening Strut Bracket Bolts And Nuts
    G04590243Courtesy of SUZUKI OF AMERICA CORP.
  3. Apply water tight sealant to mating surfaces of brake back plate and rear knuckle.

    "A": Water tight sealant 99000-31090

    Fig 2: Applying Water Tight Sealant To Mating Surfaces Of Brake Back Plate And Rear Knuckle
    G04590244Courtesy of SUZUKI OF AMERICA CORP.
  4. Install brake back plate and tighten back plate bolts to specified torque.

    Tightening torque

    Back plate bolt (b): 50 N.m (5.0 kg-m, 36.0 lb-ft)

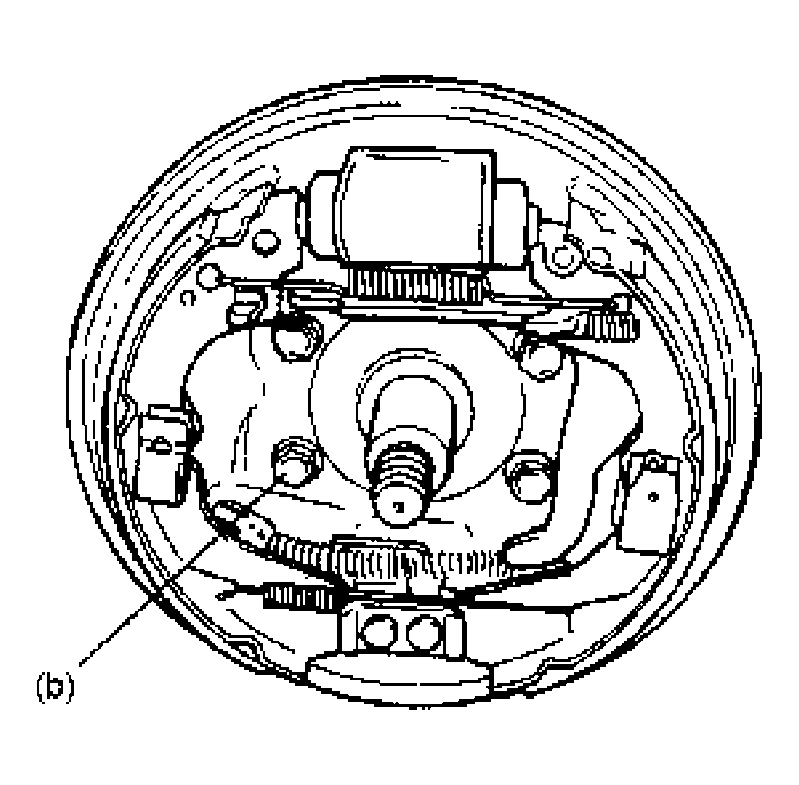

    Fig 3: Installing Brake Back Plate
    G04590245Courtesy of SUZUKI OF AMERICA CORP.
  5. For ABS equipped vehicle, check to make sure that ABS wheel speed sensor tooth is free from any metal particles and install it to knuckle.
  6. Connect brake pipe to wheel cylinder and tighten brake pipe flare nut (1) to specified torque and install bleeder plug cap (2) taken off from pipe back to bleeder plug.

    Tightening torque

    Brake pipe flare nut c: 16 N.m (1.6 kg-m, 12.0 lb-ft)

  7. Attach brake hose to strut bracket (3) with E-ring (4) securely and ABS wheel speed sensor harness bracket (if equipped).
    Fig 4: Attaching Brake Hose To Strut Bracket With E-Ring
    G04590246Courtesy of SUZUKI OF AMERICA CORP.
  8. Install wheel hub referring to WHEEL HUB WITH WHEEL BEARING AND WHEEL STUD REMOVAL AND INSTALLATION (2WD MODEL) .
  9. Install brake drum referring to REAR BRAKE DRUM REMOVAL AND INSTALLATION .
  10. Fill reservoir with brake fluid and bleed brake system. Refer to AIR BLEEDING OF BRAKE SYSTEM .
  11. Upon completion of all jobs, depress brake pedal with about 30 kg (66 lbs) load three to five times so as to obtain proper drum-to-shoe clearance.

    Adjust parking brake cable. Refer to PARKING BRAKE INSPECTION AND ADJUSTMENT .

  12. Install wheel and tighten wheel nuts to specified torque.
  13. Check to ensure that brake drum is free from dragging and proper braking is obtained.
  14. Lower hoist and bounce vehicle up and down to stabilize suspension.
  15. Tighten control rod outer bolts and trailing rod rear bolt to specified torque with vehicle weight on suspension. Then check toe.

    Tightening torque

    Control rod outer bolts and trailing rod rear bolt d: 98 N.m (9.8 kg-m, 71.0 lb-ft)

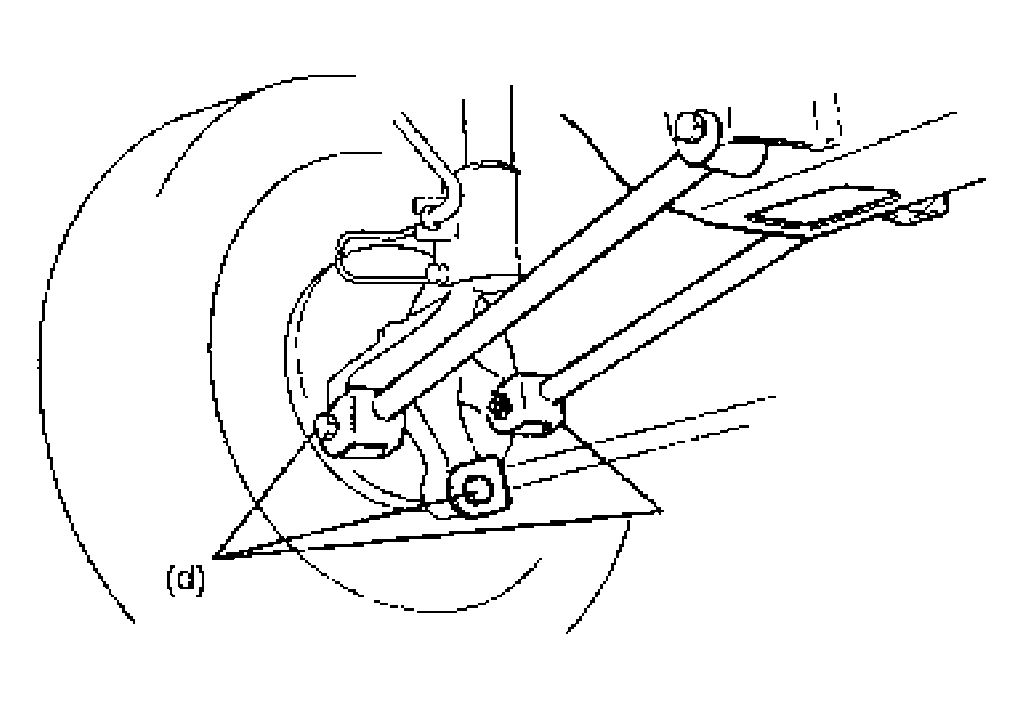

    Fig 5: Tightening Control Rod Outer Bolts
    G04590247Courtesy of SUZUKI OF AMERICA CORP.
  16. Perform BRAKE TEST (FOOT BRAKE AND PARKING BRAKE) .
  17. Check each installed part for fluid leakage.
