Rear Suspension Knuckle Check

Reference: REAR KNUCKLE REMOVAL AND INSTALLATION (2WD MODEL)

Reference: REAR KNUCKLE, WHEEL BEARING/OIL SEAL REMOVAL AND INSTALLATION (4WD MODEL)

• Inspect for cracks, deformation or damage.
• Inspect bushing for damage, wear or breakage. If any faulty condition is found, replace.

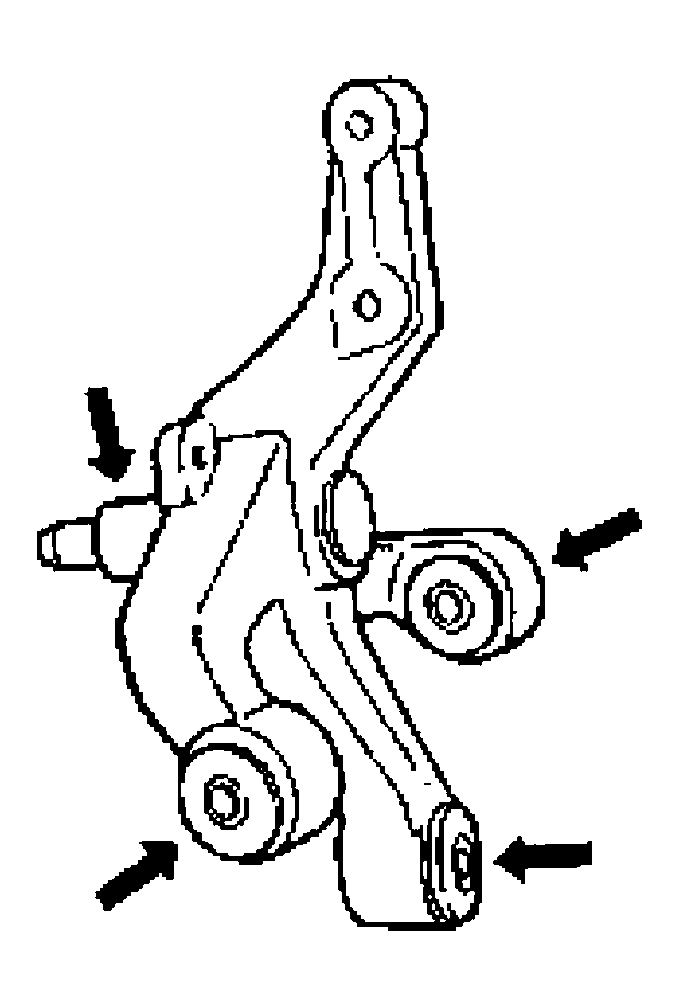

  Fig 1: Checking Rear Suspension Knuckle

  Courtesy of SUZUKI OF AMERICA CORP.
