Clutch Fluid Pipe and Hose Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Reference: CLUTCH FLUID PIPE AND HOSE INSPECTION
Reverse removal procedure for installation noting the following.
CAUTION:
- Do not allow fluid to get on painted surface.
- Do not allow pipe and hose to contact hard against vehicle body or other parts.
- For air bleeding of master cylinder alone, it must be removed from vehicle body.
(For procedures of removal and installation of master cylinder and air bleeding, refer to CLUTCH MASTER CYLINDER REMOVAL AND INSTALLATION .)
- For installation of each hose, refer to CLUTCH FLUID PIPE AND HOSE COMPONENTS .

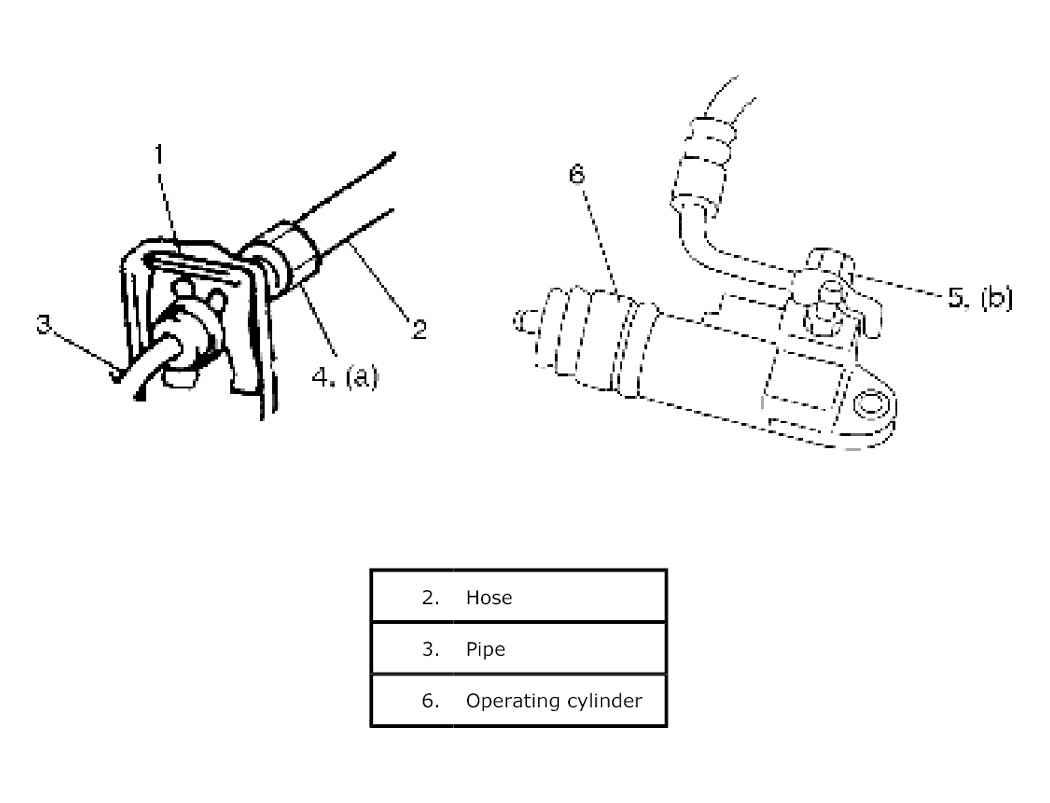

- Install E-ring (1) securely as shown.
- Tighten clutch pipe flare nut (4) by using flare nut wrench and back up wrench.
- Tighten union bolt (5).
Tightening torque
Clutch pipe flare nut (a): 16 N.m (1.6 kg-m, 11.5 lb-ft)
Union bolt (b): 23 N.m (2.3 kg-m, 17.0 lb-ft)
- After installation, check clutch pedal free travel and bleed air from system referring to AIR BLEEDING OF BRAKE SYSTEM .
- Check fluid leakage.
- Add fluid to "MAX" level of reservoir.
