Clutch Fluid Pipe and Hose Inspection

Reference: CLUTCH FLUID PIPE AND HOSE REMOVAL AND INSTALLATION

Check pipe (1) and hose (2) for dent, kink, crack, dirt and dust. Replace if check result is not satisfactory.

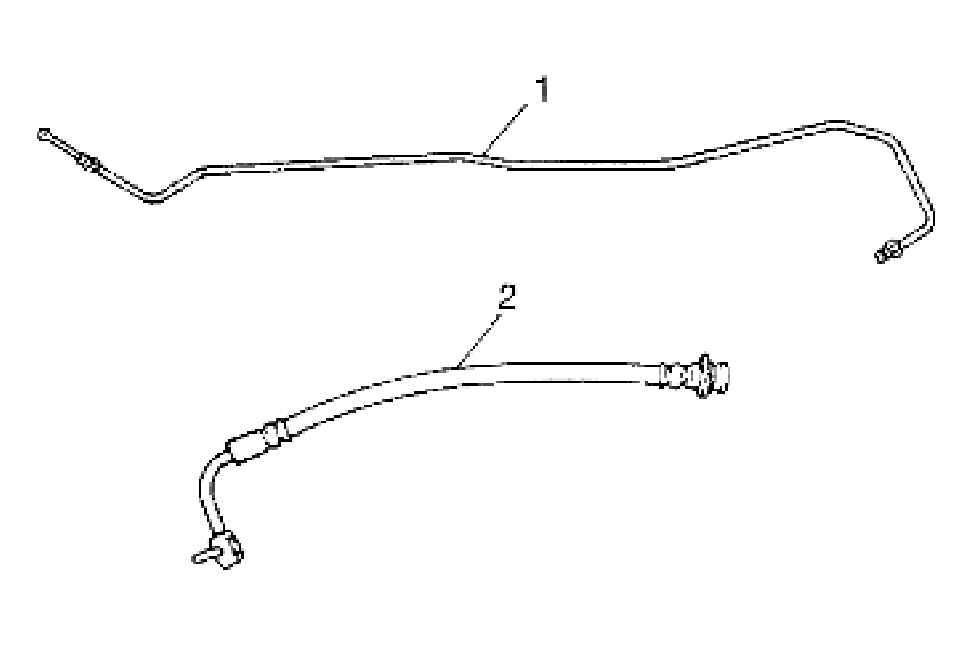

Fig 1: Checking Clutch Fluid Pipe And Hose

Courtesy of SUZUKI OF AMERICA CORP.
