Oil Cooler Pipes / Hoses Installation

Install the oil cooler inlet pipe assembly and the bolts.
Tighten:

Tighten the oil cooler inlet pipe bolts to 35 N.m (26 lb-ft).

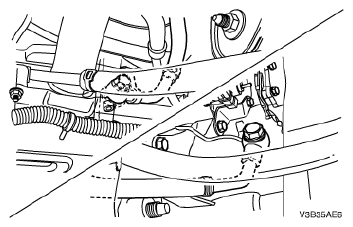

Fig 1: Identifying Oil Cooler Inlet Pipe & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the oil cooler outlet pipe assembly and the bolts.
Tighten:

Tighten the oil cooler outlet pipe bolts to 35 N.m (26 lb-ft).
Refill the transaxle fluid. Refer to Changing the Fluid .
Connect the negative battery cable.

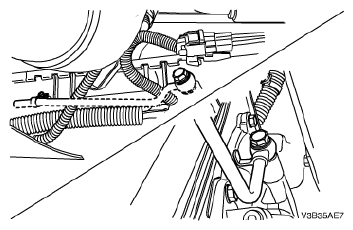

Fig 2: Identifying Oil Cooler Outlet Pipe Assembly And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
