Rear Stabilizer Bar Removal

  1. Raise and suitably support the vehicle.
  2. Remove the rear stabilizer link. Refer to Rear Stabilizer Link Removal .
  3. Remove the rear stabilizer bar bolt, U-clamp and bushing.

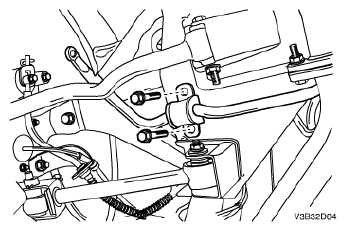

    Fig 1: Identifying Rear Stabilizer Bar & Bolt
    G04719296Courtesy of SUZUKI OF AMERICA CORP.
