Rear Stabilizer Link Removal

  1. Raise and suitably support the vehicle.
  2. Remove the stabilizer shaft-to-stabilizer link nut and the shaft-to-strut assembly nut.
  3. Remove the rear stabilizer link.

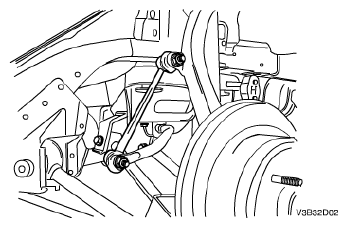

    Fig 1: Identifying Rear Stabilizer Link
    G04719294Courtesy of SUZUKI OF AMERICA CORP.
