Crossmember Assembly Installation

Install the control arm onto the crossmember assembly. Refer to Control Arm Installation .
Tighten:

Tighten the stabilizer bar bolts and nuts to 50 N.m (37 lb-ft).
Install the crossmember bolts-to-control arm, nuts-to-longitudinal and crossmember.
Tighten:

Tighten the crossmember bolts-to-control arm and nuts-to-longitudinal. to 150 N.m (110 lb-ft).

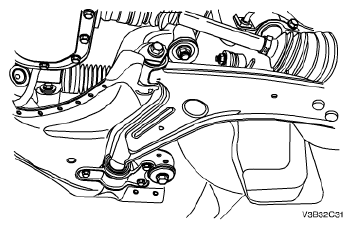

Fig 1: Identifying Crossmember, Bolts-To-Control Arm & Nuts-To-Longitudinal
Courtesy of SUZUKI OF AMERICA CORP.
Install the out tie rod and control arm ball joint. Refer to OUTER TIE ROD INSTALLATION and Control Arm Installation .
Install the front exhaust pipe and centermember.

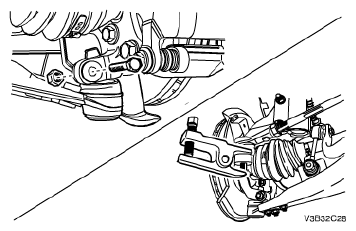

Fig 2: Identifying Outer Tie Rod And Control Arm Ball Joint
Courtesy of SUZUKI OF AMERICA CORP.
Install the steering interm shaft and bolt.
Tighten:

Tighten the steering interm shaft bolt to 25 N.m (18 lb-ft).

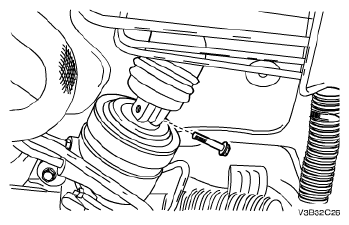

Fig 3: Identifying Steering Interm Shaft And Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the power steering pipe union nuts.
Tighten:

Tighten the power steering pipe union nuts to 30 N.m (22 lb-ft).
Fill the power steering oil into the power steering system.

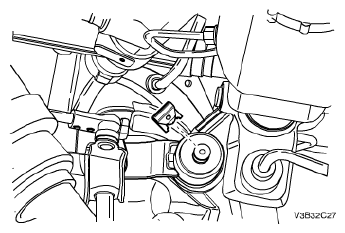

Fig 4: Identifying Shift Control Bracket
Courtesy of SUZUKI OF AMERICA CORP.
