Outer Tie Rod Installation

Reposition the adjusting nut to the marks on the inner tie rod.
Install the outer tie rod by twisting it onto the inner tie rod.

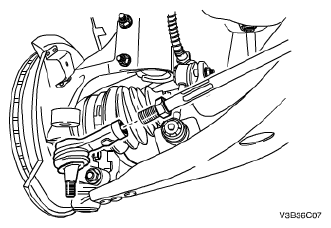

Fig 1: Identifying Outer Tie Rod Adjusting Nut And Outer Tie Rod
Courtesy of SUZUKI OF AMERICA CORP.
Connect the outer tie rod to the steering knuckle.
Perform a front toe adjustment. Refer to FRONT TOE ADJUSTMENT .
Tighten the adjusting nut.
Tighten:

Tighten the outer tie rod adjusting nut to 64 N.m (47 lb-ft).
Install the outer tie rod nut.
Tighten:

Tighten the outer tie rod nut to 50 N.m (37 lb-ft).
Install the wheel. Refer to WHEEL INSTALLATION .

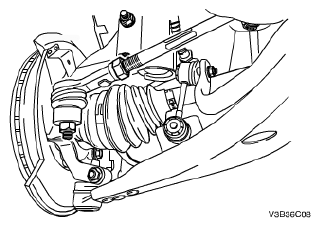

Fig 2: Identifying Outer Tie Rod Nut & Adjusting Nut
Courtesy of SUZUKI OF AMERICA CORP.
