A/C Module Installation

Position the A/C module in the vehicle.
CAUTION: To avoid damaging the heater core tubes, make sure they do not contact the fire wall opening.
Slowly raise the A/C module into position and hold it against the fire wall while the screws are installed and tightened from the engine side of the fire wall.
Align and install the A/C module screws above the fuel filter and at the evaporator flange.
Tighten:

Tighten the A/C module screws to 8 N.m (71 lb-in.).

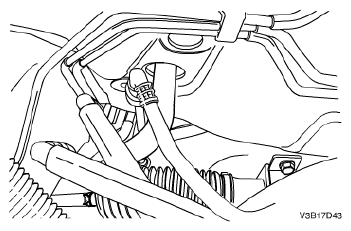

Fig 1: Identifying A/C Module
Courtesy of SUZUKI OF AMERICA CORP.
Install the A/C module screws adjacent to the heater hoses.
Tighten:

Tighten the A/C module screws to 8 N.m (71 lb-in.).
Install the evaporator drain hose.

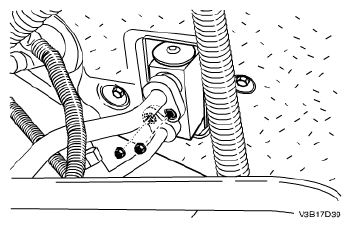

Fig 2: Identifying Evaporator Drain Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install the 2 heater hoses.
Slide the heater hose clamps into position.
Install the instrument panel carrier assembly. Refer to INSTRUMENT PANEL INSTALLATION .

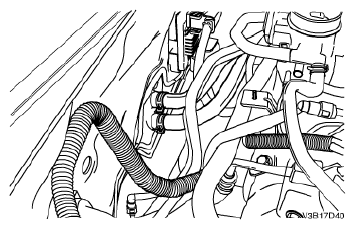

Fig 3: Identifying Heater Hoses
Courtesy of SUZUKI OF AMERICA CORP.
Install new O-rings on the suction hose and the liquid evaporator pipe at the fire wall and put the pipes back in place.
Install the retaining nuts that secure the suction hose and the liquid evaporator pipe blocks at the fire wall.
Tighten:

Tighten the suction hose and the liquid evaporator pipe retaining nuts to 10 N.m (89 lb-in.).
Fill the cooling system. Refer to DRAINING AND REFILLING THE COOLING SYSTEM .
Recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating and Charging Procedures for A/C System .
Connect the negative battery cable.

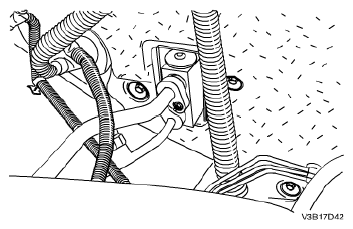

Fig 4: Identifying Suction Hose, Liquid Evaporator Pipe Blocks & Retaining Nuts
