Seat Position Sensor Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Reference: SEAT POSITION SENSOR INSPECTION

Install seat position sensor on seat adjuster and tighten seat position sensor bolt to specified torque.
Tightening torque

Seat position sensor bolt a: 8.0 N.m (0.8 kg-m, 6.0 lb-ft)

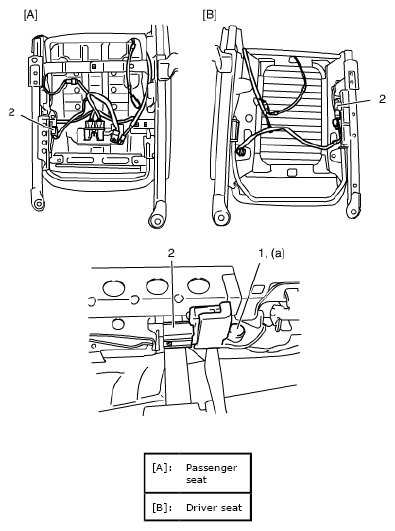

Fig 1: Identifying Seat Position Sensor & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Connect seat position sensor connector at seat harness.
Install front seat referring to FRONT SEAT REMOVAL AND INSTALLATION .
Connect negative cable at battery.
Enable air bag system referring to ENABLING AIR BAG SYSTEM .
