Front Bumper Impact Bar Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the front impact bar with the bolts.

    Tighten:

    Tighten the front impact bar bolts to 39 N.m (29 lb-ft).

  2. Connect the electrical connector.
  3. Install the front bumper energy absorber. Refer to Front Bumper Energy Absorber Installation .
  4. Install the front bumper fascia. Refer to Front Bumper Fascia Installation .

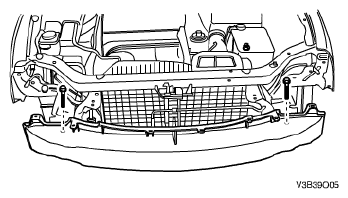

    Fig 1: Identifying Front Bumper Impact Bar And Bolts
    G04720722Courtesy of SUZUKI OF AMERICA CORP.
