Front Bumper Fascia Installation

Install the front bumper fascia.
Install the upper fascia screws.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
Install the lower fascia screws and the bolts.
Tighten:
- Tighten the lower fascia bolts to 2 N.m (18 lb-in.).
- Tighten the lower fascia screws to 4 N.m (36 lb-in.).

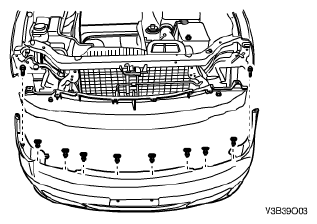

  Fig 1: Identifying Front Bumper Fascia
  Courtesy of SUZUKI OF AMERICA CORP.
Install the fender-to-fascia bolts and the screws.
Tighten:
- Tighten the fender-to-fascia bolts to 15 N.m (133 lb-in.).
- Tighten the fender-to-fascia screws to 4 N.m (36 lb-in.).
Install the headlamps, the front sidemarker lamps, the fog lamps and the turn signal lamps. Refer to LIGHTING SYSTEMS - REPAIR INSTRUCTIONS .
Install the front wheel well splash shields. Refer to FRONT WHEEL WELL SPLASH SHIELD INSTALLATION .
Connect the negative battery cable.

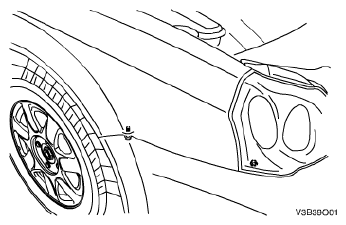

Fig 2: Identifying Fender-To-Fascia Bolts And Screws
Courtesy of SUZUKI OF AMERICA CORP.
