Transaxle Rear Cover Disassembly and Reassembly: Reassembly

Reference: TRANSAXLE REAR COVER INSPECTION

1. Apply A/T fluid to new O-ring and install O-ring (1) to forward clutch accumulator piston (2).
2. Press forward clutch accumulator piston (2) into transaxle rear cover.
   NOTE: Do not twist or deviate O-rings during installation.
3. Install forward clutch accumulator spring (3) and forward clutch accumulator cover (4) with 2 bolts.

   Tightening torque

   Forward clutch accumulator bolts a: 10 N.m (1.0 kg-m, 7.5 lb-ft)

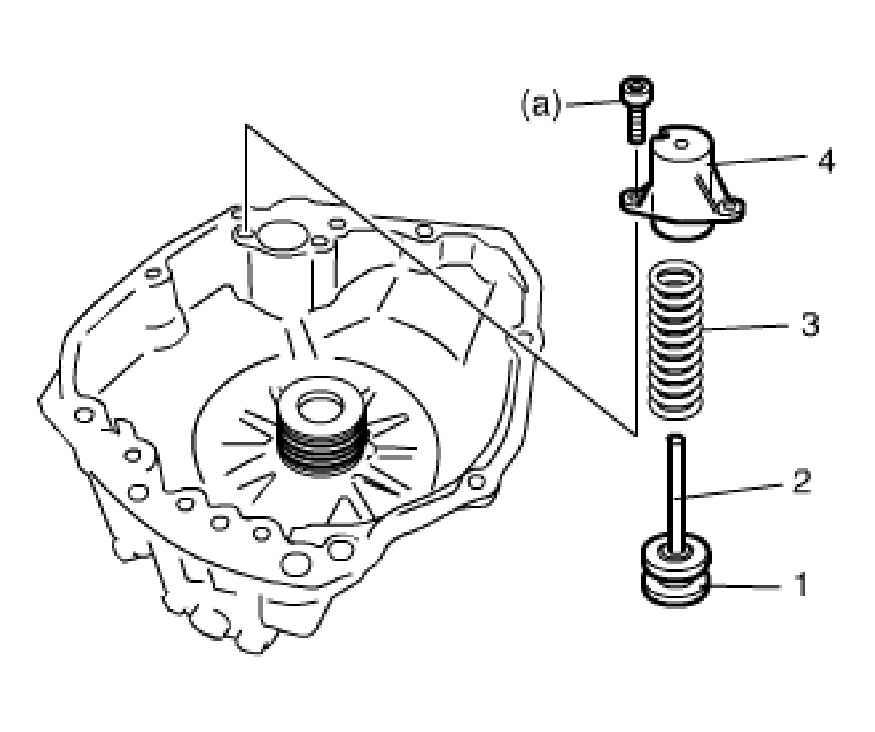

   Fig 1: Installing Forward Clutch Accumulator Spring And Forward Clutch Accumulator Cover

   Courtesy of SUZUKI OF AMERICA CORP.
4. Apply A/T fluid to new oil seal rings and install oil seal rings (1) to transaxle rear cover (2).
   NOTE:

   • Do not spread oil seal ring ends excessively.
   • Make sure that opening ends of oil seal rings are not lined up so as to prevent fluid leakage.

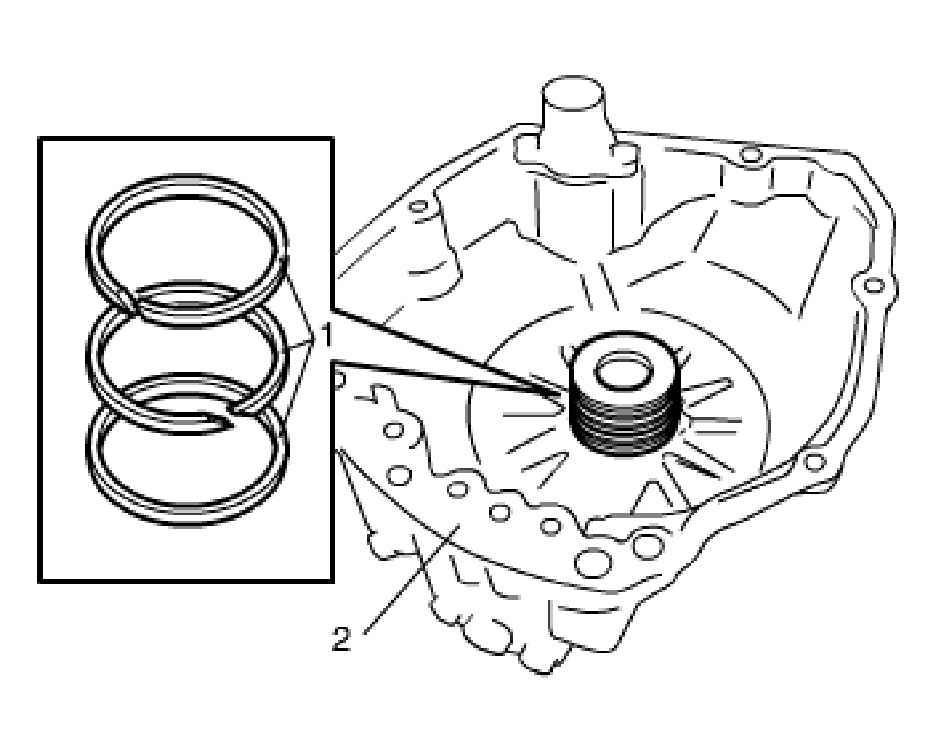

     Fig 2: Installing Oil Seal Rings To Transaxle Rear Cover

     Courtesy of SUZUKI OF AMERICA CORP.
