Transaxle Rear Cover Inspection

Reference: TRANSAXLE REAR COVER DISASSEMBLY AND REASSEMBLY

Measure free length forward clutch accumulator spring. If necessary, replace with a new one.

Forward clutch accumulator spring free length

Standard: 66.64 mm (2.624 in.)

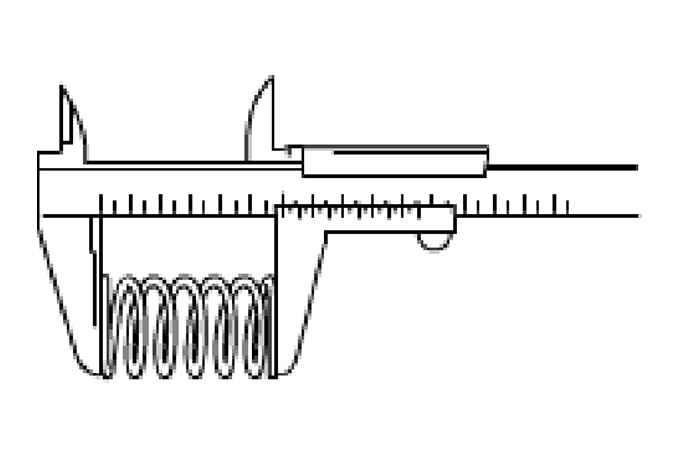

Fig 1: Measuring Free Length Forward Clutch Accumulator Spring

Courtesy of SUZUKI OF AMERICA CORP.
