Rear Knuckle Installation

Install the hub into the rear knuckle. Refer to "REAR HUB AND BEARING ASSEMBLY INSTALLATION ".
Install the front and rear parallel link. Refer to "FRONT PARALLEL LINK INSTALLATION and REAR PARALLEL LINK INSTALLATION "
Install the upper arm nut-to-rear knuckle.
Tighten

Tighten the upper arm nut-to-rear knuckle to 110 N.m (81 lb-ft).

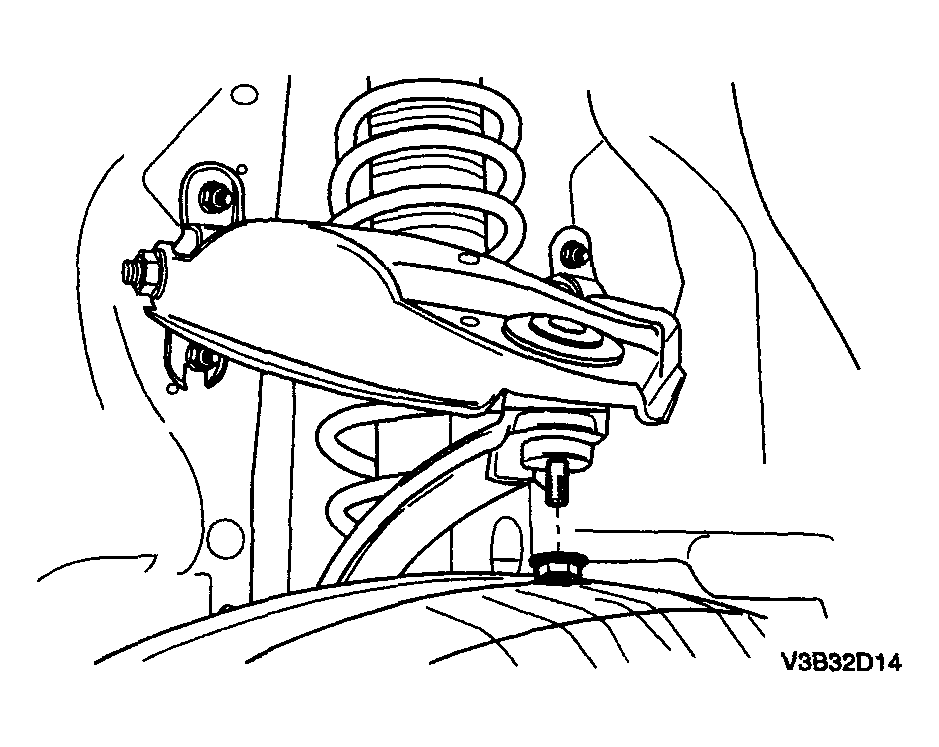

Fig 1: Installing Upper Arm Nut-To-Rear Knuckle
Courtesy of SUZUKI OF AMERICA CORP.
