Front Parallel Link Installation

Install the front parallel link bolt-to-knuckle and the cam bolt-to-rear crossmember.
Tighten

Tighten the front parallel link bolt-to-knuckle to 110 N.m (81 lb-ft)
Adjust the rear toe, if needed. Refer to "REAR TOE ADJUSTMENT ".
Tighten the front parallel link bolt
Tighten

Tighten the cam bolt to 80 N.m (59 lb-ft).

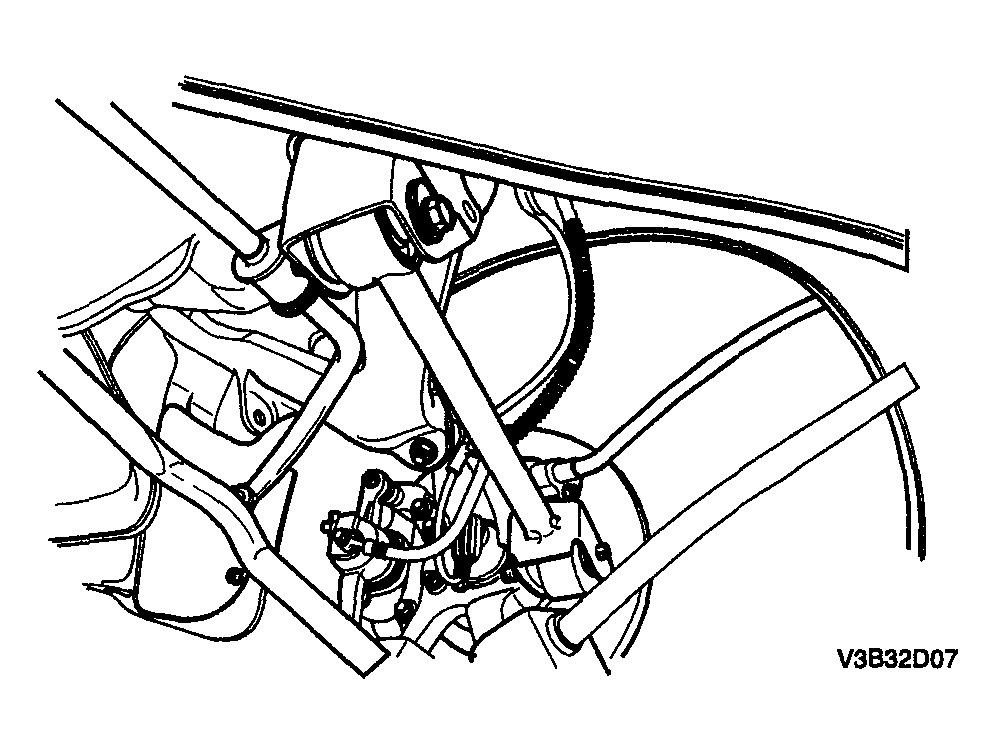

Fig 1: Installing Front Parallel Link Bolt-To-Knuckle And CAM Bolt-To-Rear Crossmember
Courtesy of SUZUKI OF AMERICA CORP.
