Rear Toe Adjustment

Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors. Refer to "PRELIMINARY INSPECTION ".
Loosen the front parallel link cam bolt to crossmember.

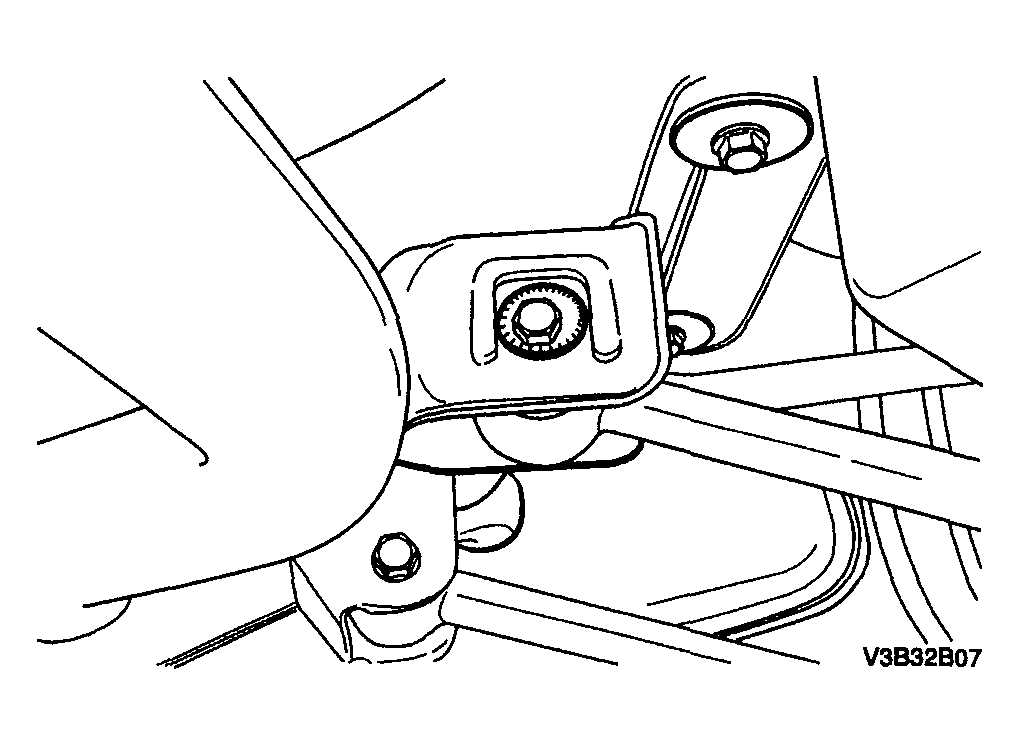

Fig 1: Loosening Front Parallel Link Cam Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Tighten the front parallel link cam bolt to 40 N.m (30 lb-ft).

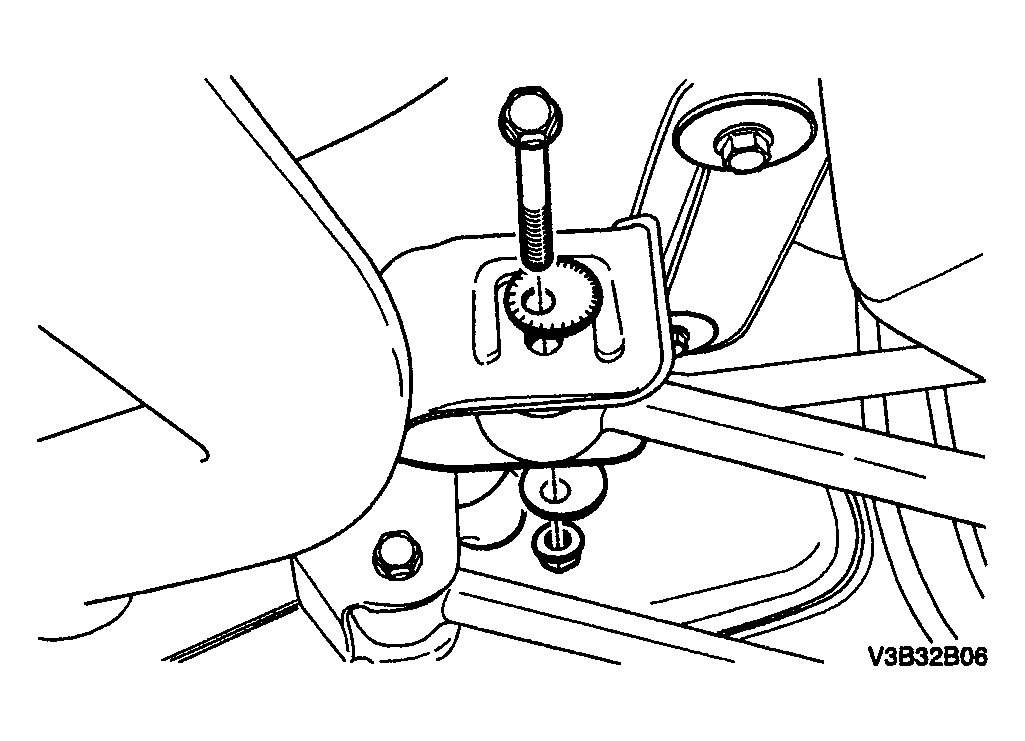

Fig 2: Tightening Front Parallel Link CAM Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Adjust the rear toe specification. Refer to "WHEEL ALIGNMENT SPECIFICATIONS " in this article for preferred specifications.
Tighten the front parallel link cam bolt to 80 N.m (59 lb-ft).

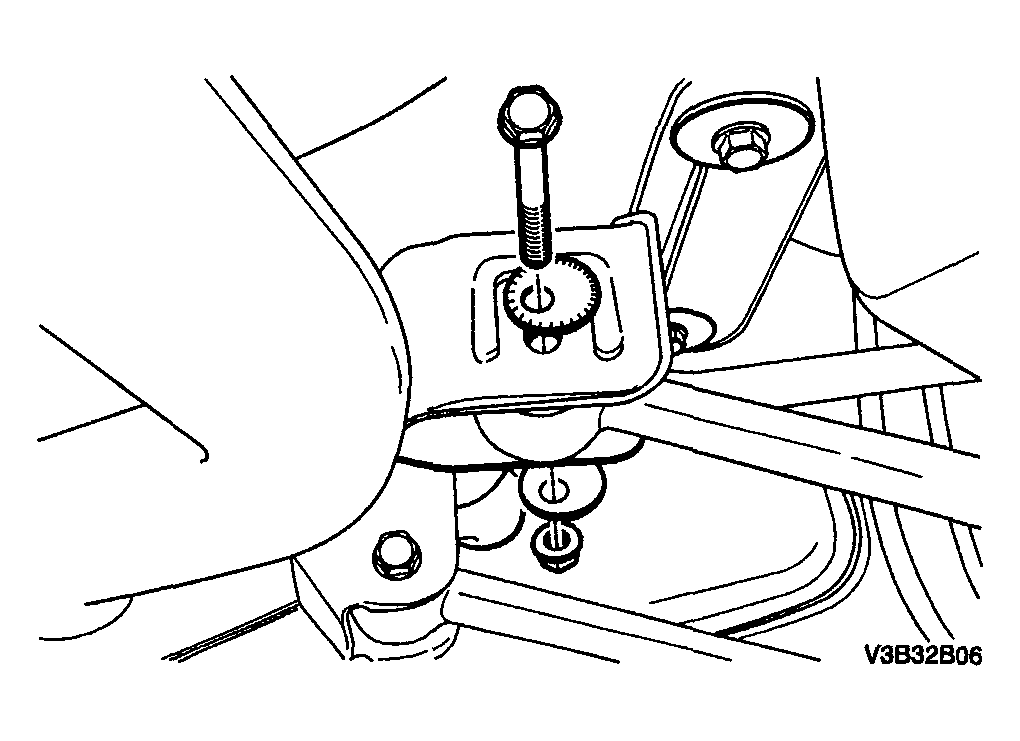

Fig 3: Tightening Front Parallel Link CAM Bolt
Courtesy of SUZUKI OF AMERICA CORP.
