Knuckle and Hub Removal

Remove the wheel.
Remove the caulking nut and washer.

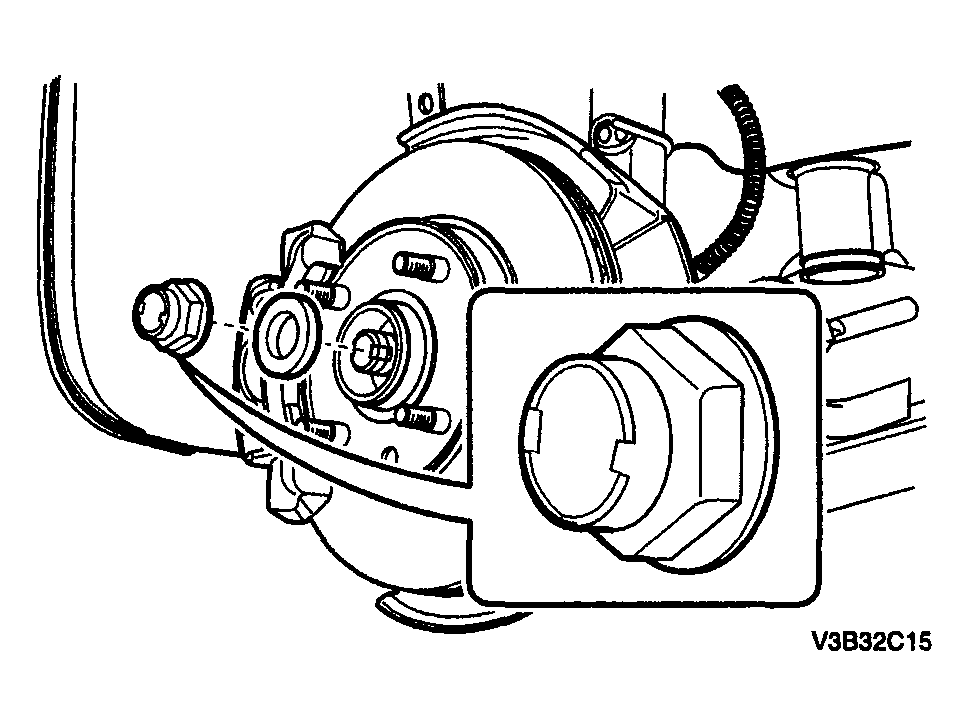

Fig 1: Removing Caulking Nut And Washer
Courtesy of SUZUKI OF AMERICA CORP.
Remove the outer tie rod. Refer to "OUTER TIE ROD REMOVAL ".
Disconnect the control arm ball joint. Refer to this article.
Remove the brake caliper. Refer to "CALIPER REMOVAL ".
Remove the detent screw from the brake disc. Remove the disc.

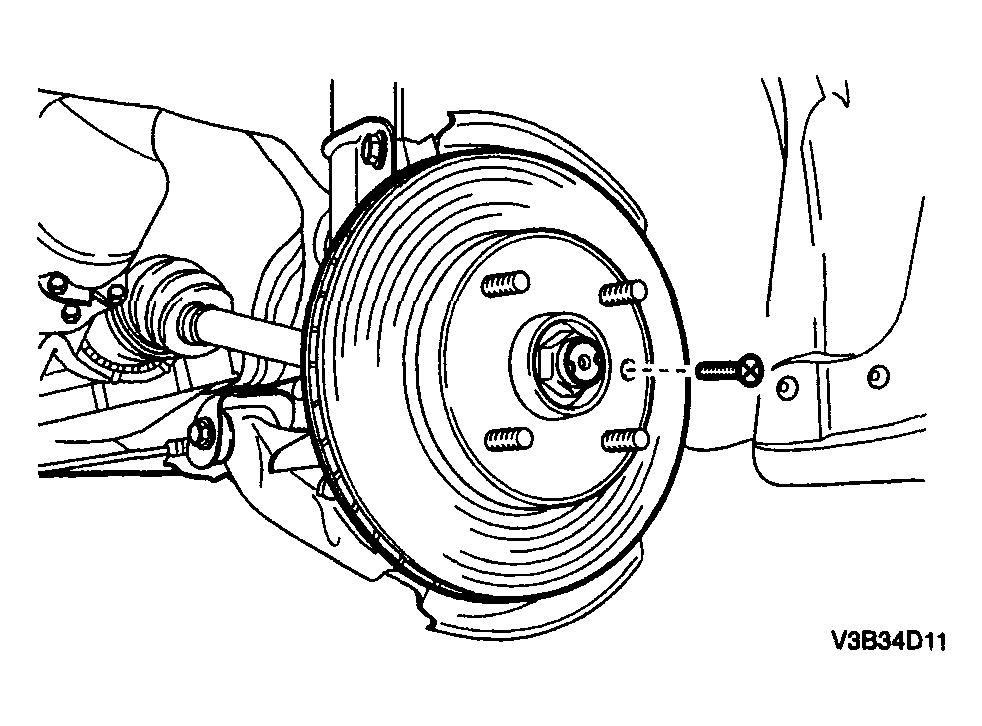

Fig 2: Removing Detent Screw From Brake Disc
Courtesy of SUZUKI OF AMERICA CORP.
Remove the splash shield. Refer to "SPLASH SHIELD REMOVAL ".

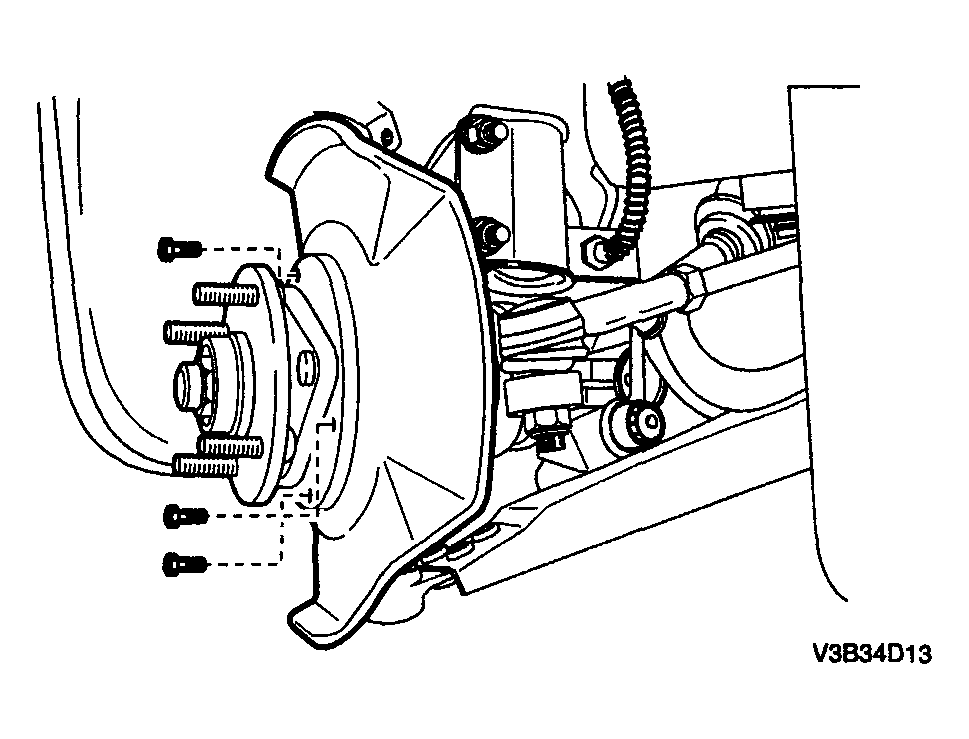

Fig 3: Removing Splash Shield
Courtesy of SUZUKI OF AMERICA CORP.
Remove the front strut bolts.
Remove the knuckle, hub assembly.

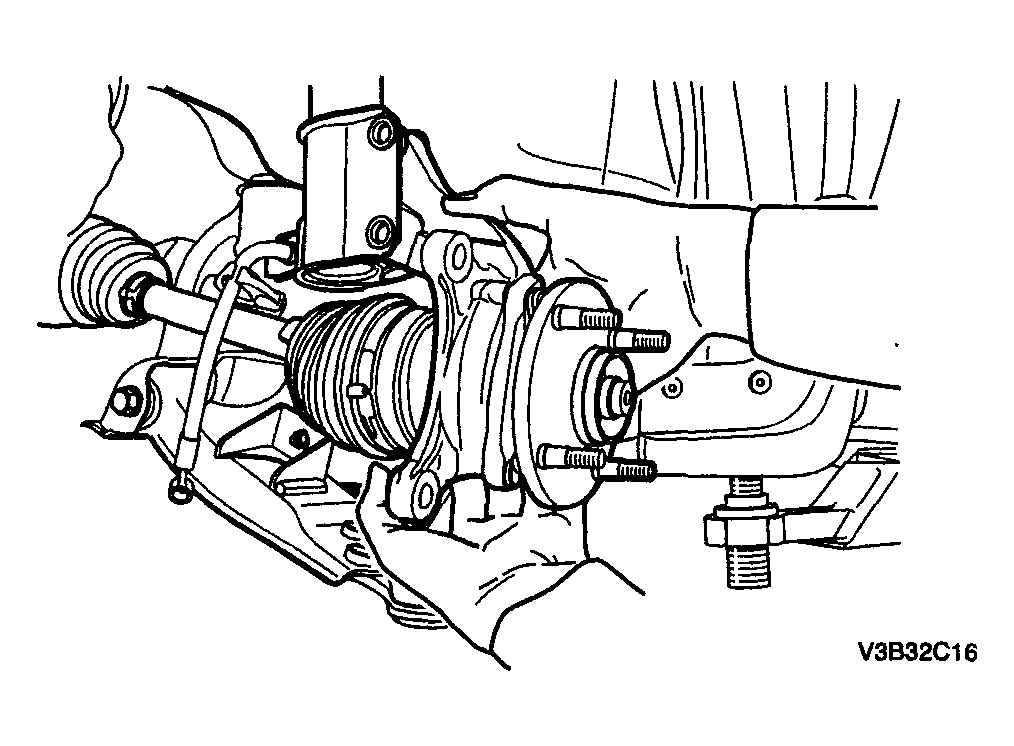

Fig 4: Removing Knuckle Hub Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the hub bolts from the knuckle and separate the hub from the knuckle.

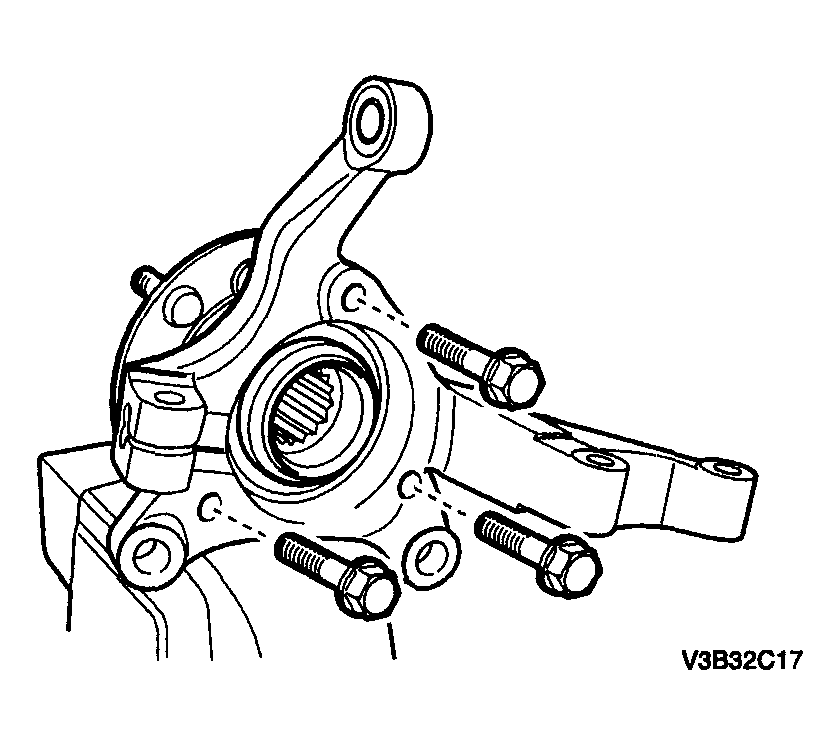

Fig 5: Removing Hub Bolts From Knuckle And Separate Hub From Knuckle
Courtesy of SUZUKI OF AMERICA CORP.
