Speedometer / Odometer / Trip Odometer Installation

  1. Install the speedometer with the screws.

    Tighten

    Tighten the speedometer screws to 2 N.m (18 lb-in).

  2. Install the instrument cluster case with the screws.
  3. Install the instrument cluster lens.

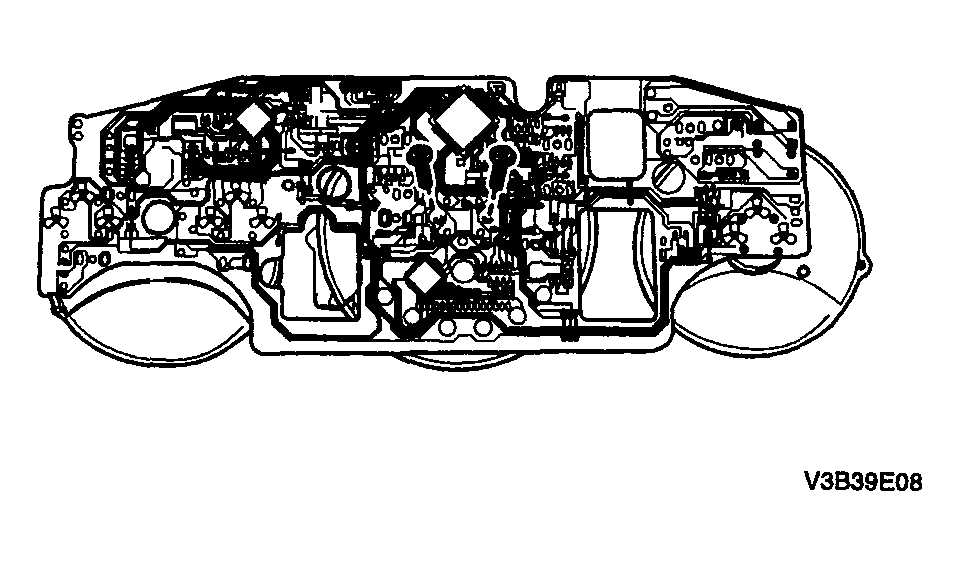

    Fig 1: Installing Instrument Cluster Case With Screws
    G04096158Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the instrument cluster. Refer to "INSTRUMENT CLUSTER INSTALLATION ".

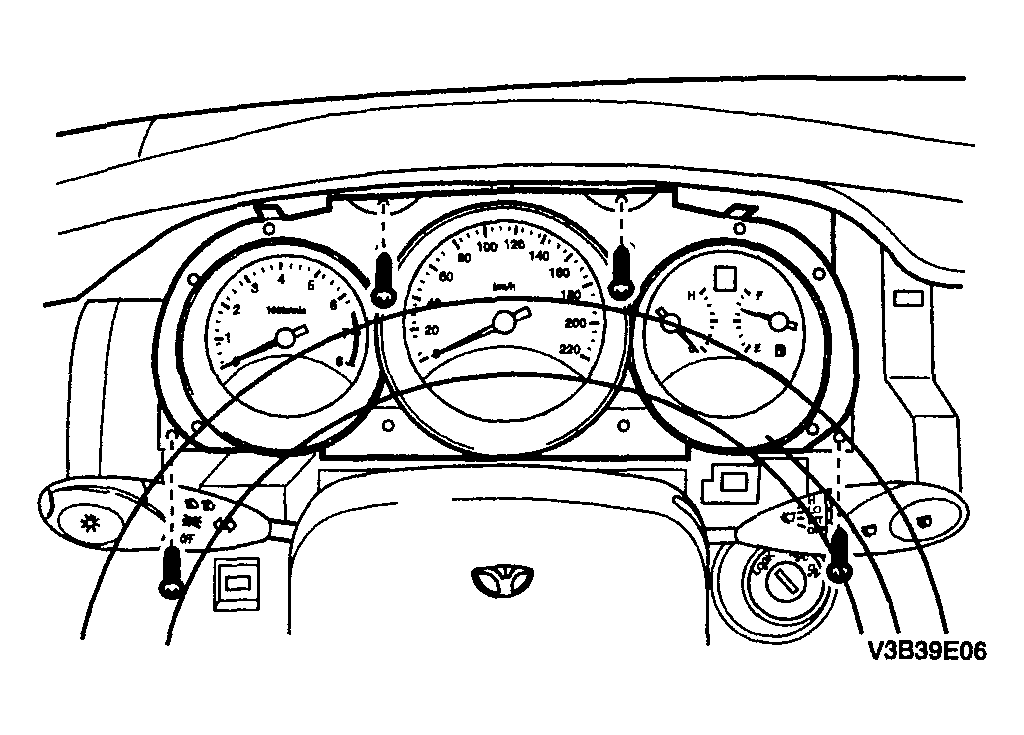

    Fig 2: Installing Instrument Cluster
    G04096159Courtesy of SUZUKI OF AMERICA CORP.
  5. Connect the negative battery cable.
