Intelligent Switching Unit (ISU) Removal

  1. Disconnect the negative battery connector.
  2. Remove the instrument panel under cover. Refer to "INSTRUMENT PANEL REMOVAL ".
  3. Remove the knee bolster. Refer to "DRIVER'S SIDE KNEE BOLSTER REMOVAL ".

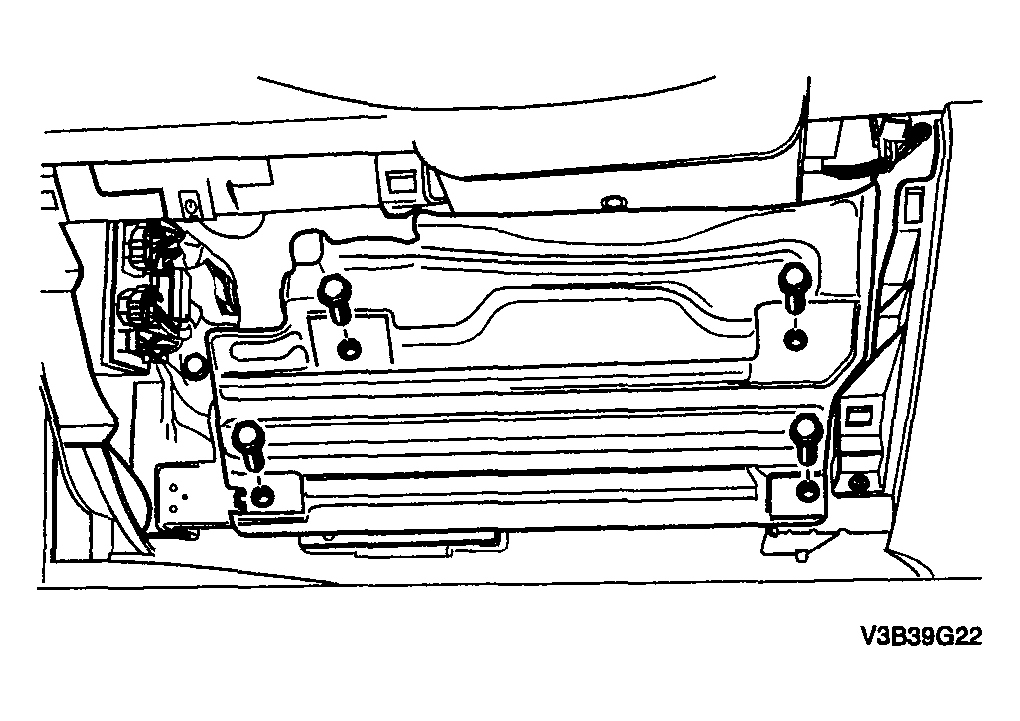

    Fig 1: Removing Knee Bolster
    G04096563Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the electrical connectors.
  5. Remove the nuts securing the Intelligent Switching Unit (ISU).
  6. Remove the Intelligent Switching Unit (ISU).

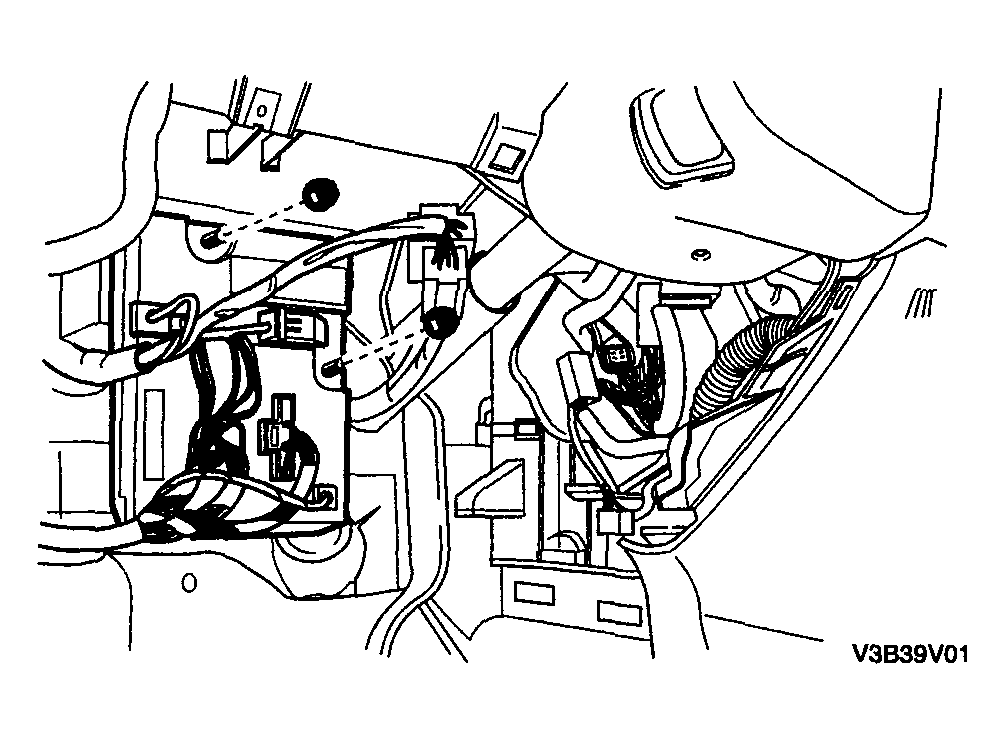

    Fig 2: Removing Intelligent Switching Unit
    G04096564Courtesy of SUZUKI OF AMERICA CORP.
