Instrument Panel Removal

  1. Disconnect the negative battery cable.
  2. Remove the floor console. Refer to "FLOOR CONSOLE REMOVAL ".
  3. Remove the sun sensor. Refer to "SUN SENSOR REMOVAL : Automatic Type".
  4. Remove the tweeter speakers and the stereo cassette AM/FM radio. Refer to "TWEETER SPEAKERS REMOVAL " and "STEREO CASSETTE AM/FM RADIO REMOVAL ".
  5. Remove the instrument cluster dimmer switch assembly. Refer to "INSTRUMENT CLUSTER DIMMER / HEADLAMP LEVELING SWITCH REMOVAL ".
  6. Remove the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL REMOVAL ".
  7. Remove the automatic temperature controls assembly. Refer to "AUTOMATIC TEMPERATURE CONTROL ASSEMBLY REMOVAL : Automatic Type".

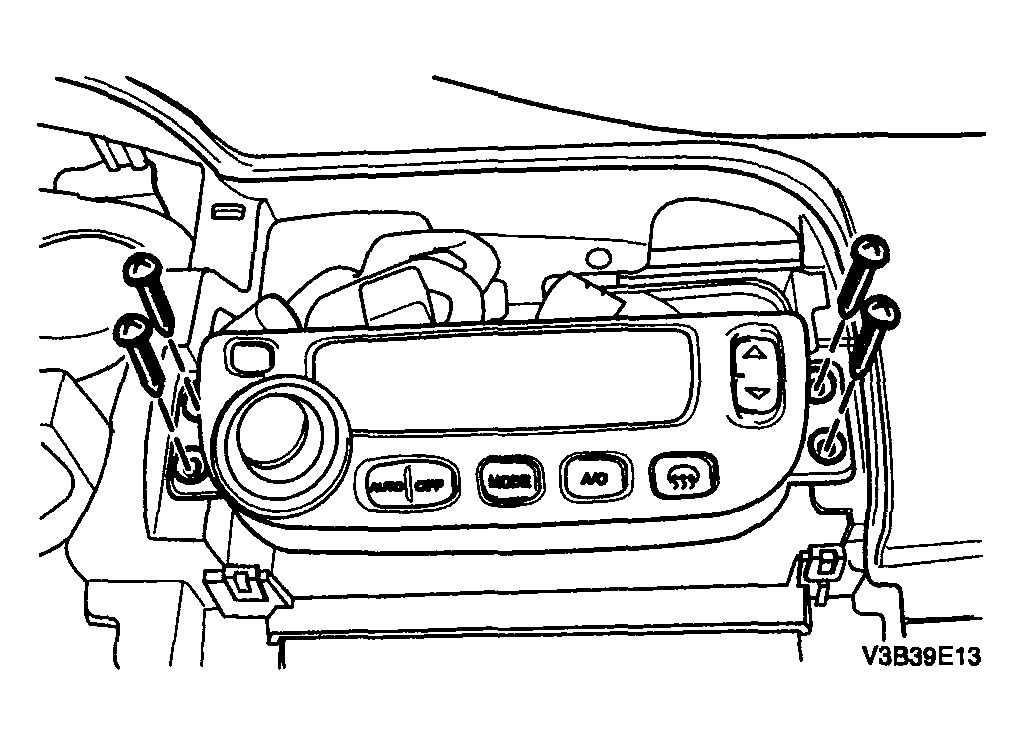

    Fig 1: Removing Screws And Automatic Temperature Controls Assembly
    G04096172Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove the instrument cluster. Refer to "INSTRUMENT CLUSTER REMOVAL ".

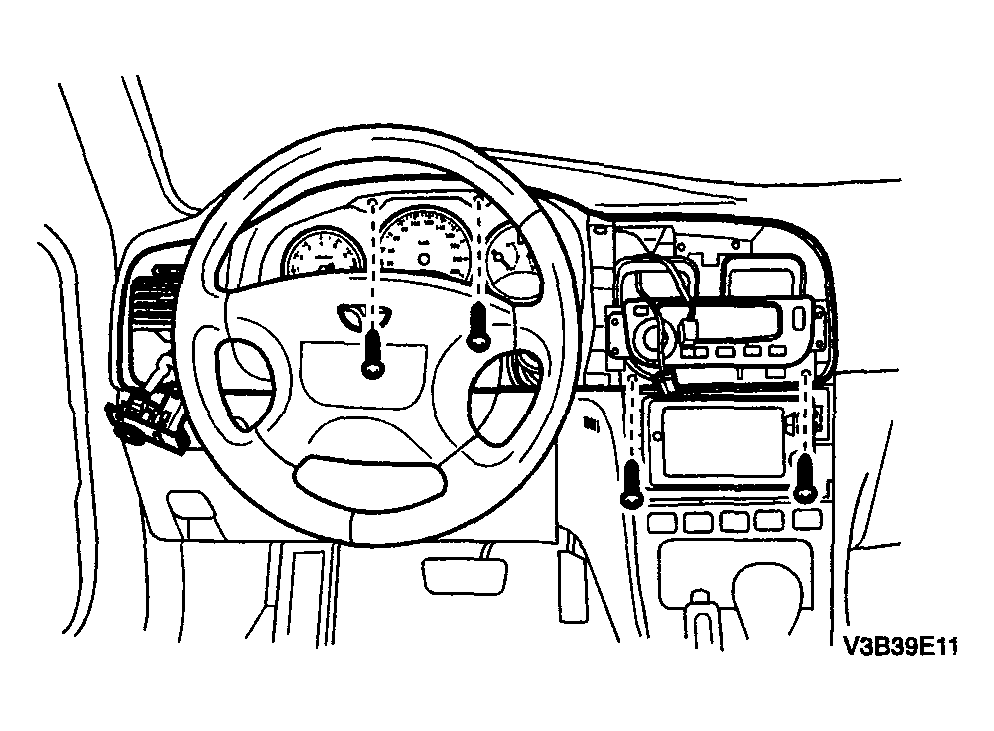

    Fig 2: Removing Screws And Instrument Cluster
    G04096173Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove the kick panels. Refer to "KICK PANEL REMOVAL ".
  10. Remove the glove box. Refer to "GLOVE BOX REMOVAL ".
  11. Remove the screws and the glove box housing.
  12. Disconnect the glove box housing electrical connectors.
  13. Remove the knee bolster. Refer to "DRIVER'S SIDE KNEE BOLSTER REMOVAL ".
  14. Remove the screws and the instrument panel side covers.
  15. Remove the screw and instrument panel fuse block.
  16. Remove the nuts and the bolts securing the steering column.

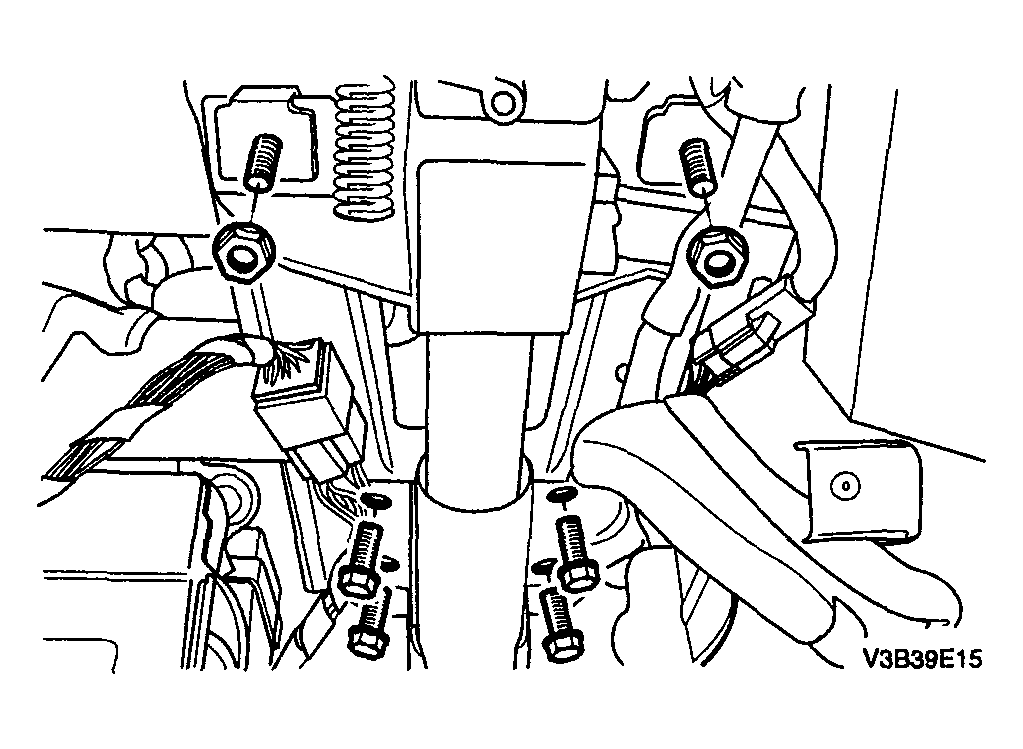

    Fig 3: Removing Nuts And Bolts Securing Steering Column
    G04096174Courtesy of SUZUKI OF AMERICA CORP.
  17. Disconnect the steering column electrical connector.
  18. Lower the steering column.
  19. Remove the instrument panel bolts below the windshield.

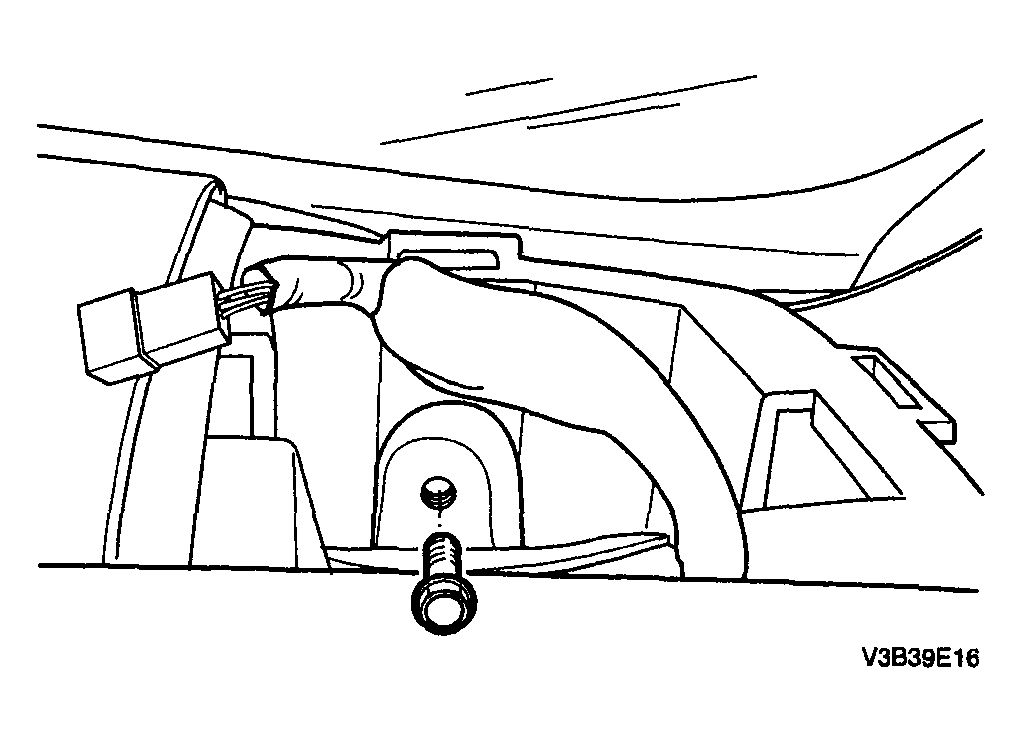

    Fig 4: Removing Instrument Panel Bolts Below Windshield
    G04096175Courtesy of SUZUKI OF AMERICA CORP.
  20. Remove the fixing screws securing the instrument panel.

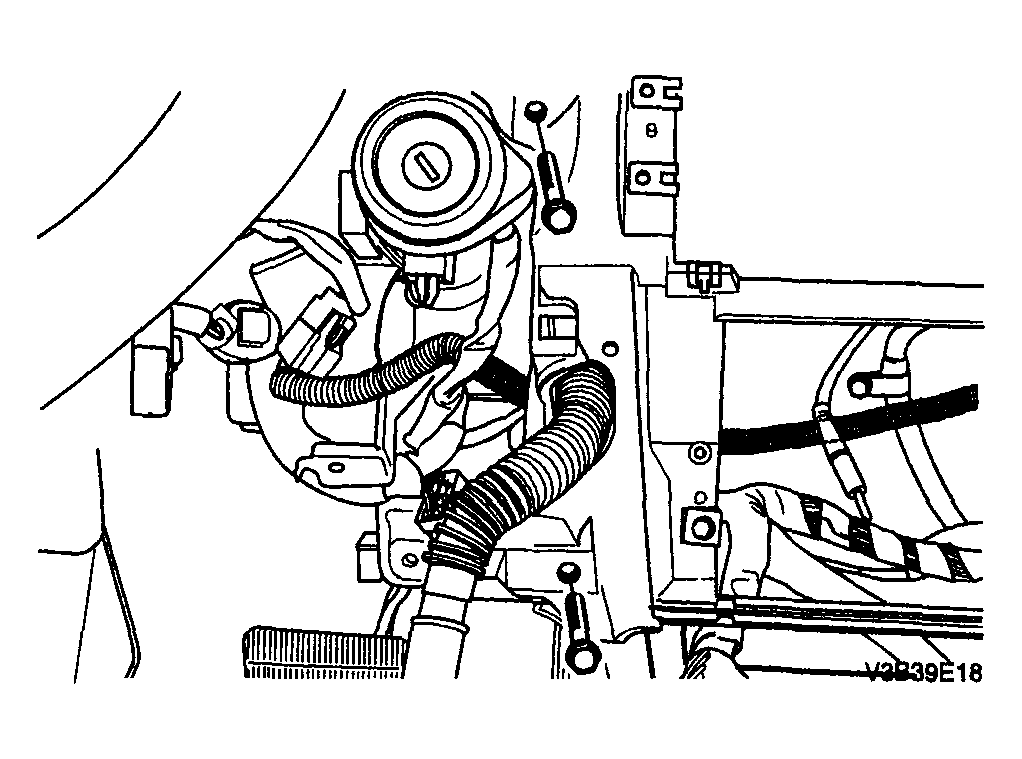

    Fig 5: Removing Fixing Screws Securing Instrument Panel
    G04096176Courtesy of SUZUKI OF AMERICA CORP.
  21. Remove the nuts securing the sides of the instrument panel to the body.
  22. Disconnect the instrument panel electrical connectors.
  23. Remove the instrument panel.

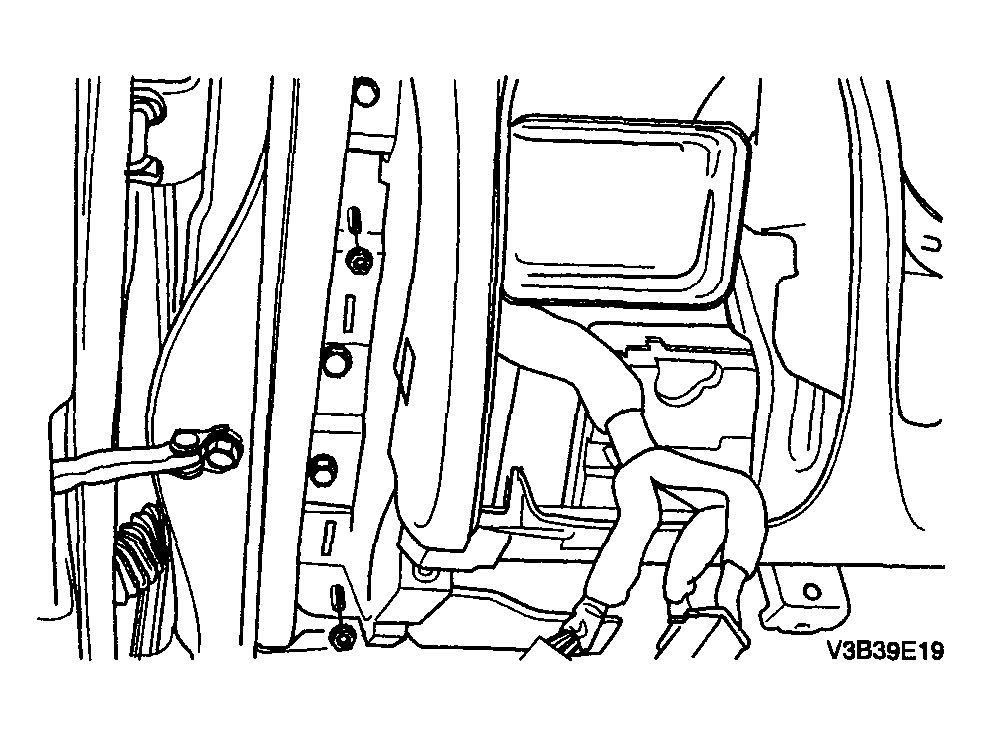

    Fig 6: Removing Nuts Securing Sides Of Instrument Panel To Body
    G04096177Courtesy of SUZUKI OF AMERICA CORP.
