Seat Covers Removal

  1. Remove the seatback and/or cushion. Refer to "FRONT SEATBACK REMOVAL " and/or "FRONT SEAT CUSHION REMOVAL ".
  2. Remove the hog rings from the seatback and/or the cushion.
  3. Remove the seat cover from the seatback and/or the cushion.

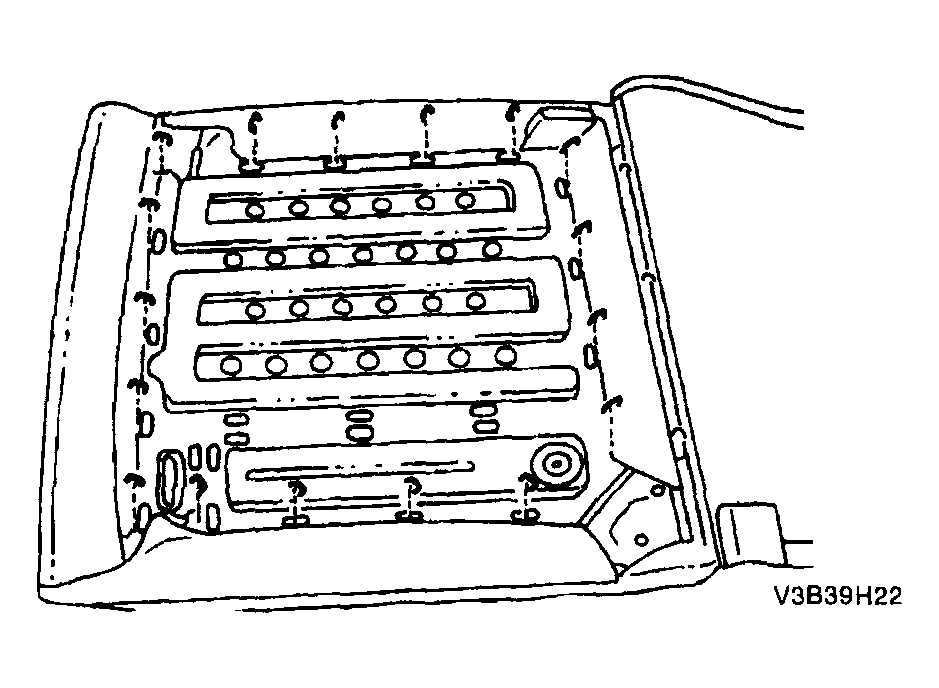

    Fig 1: Removing Seat Cover From Seatback And/Or Cushion
    G04096320Courtesy of SUZUKI OF AMERICA CORP.
