Front Seat Cushion Removal

  1. Remove the front seat from the vehicle. Refer to "FRONT BUCKET SEAT REMOVAL ".
  2. Remove the seat trims.
  3. Remove the seat cushion bolts.
  4. Remove the cushion from the seat track.

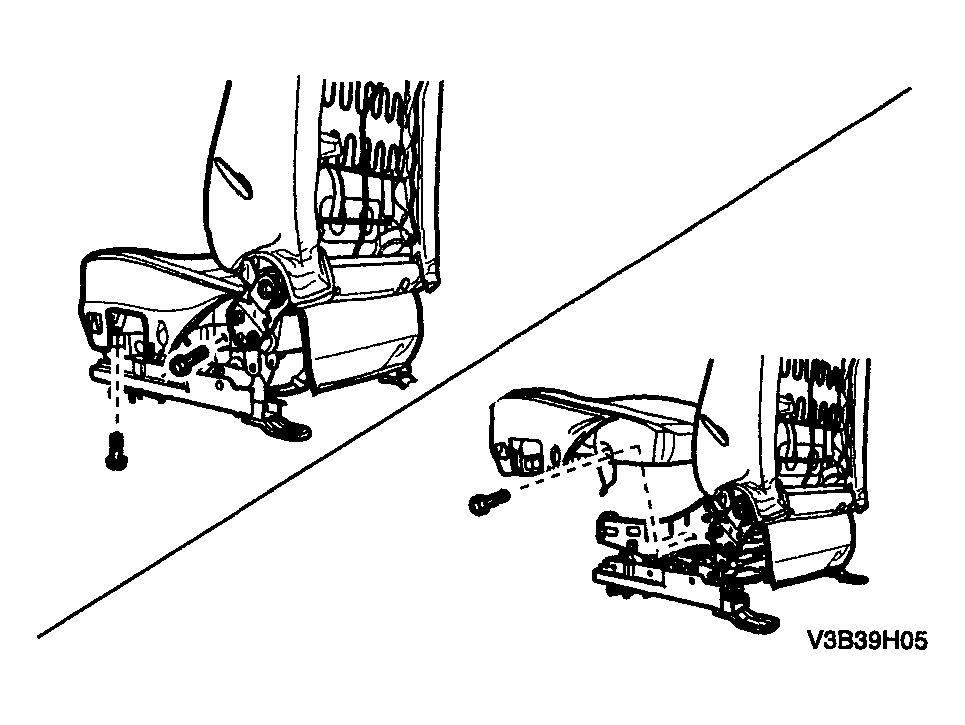

    Fig 1: Removing Cushion From Seat Track
    G04096289Courtesy of SUZUKI OF AMERICA CORP.
